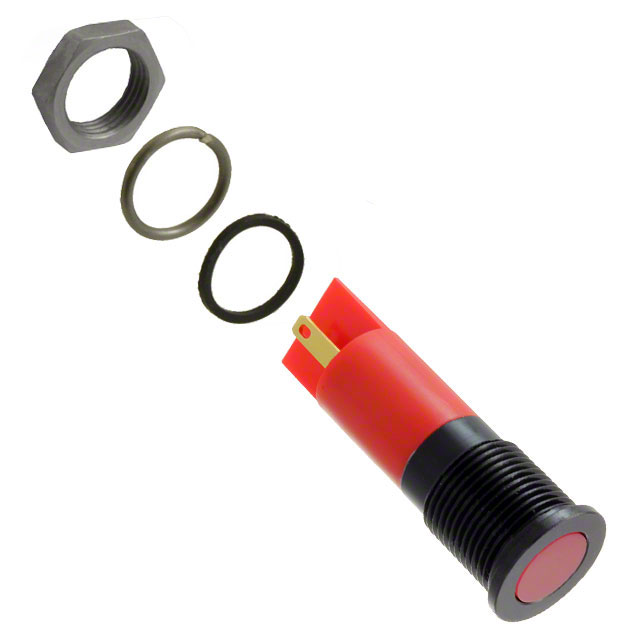

Q14F1BXXHR24E
14MM FLSH BLK CHRM HYP RED 24VDCManufacturer: APEM Inc.
Categories: Panel Indicators, Pilot Lights
Quality Control: Learn More
LED Panel Indicator Red Diffused 24V 20mA Quick Connect - 0.110"" (2.8mm)
Additional Information
Series: Q14RoHS Status: ROHS3 CompliantManufacturer Lead Time: 14 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Current | 20mA |
| Voltage | 24V |
| Type | LED |
| Millicandela Rating | 800mcd |
| Termination Style | Quick Connect - 0.110"" (2.8mm) |
| Lens Color | Red |
| Viewing Angle | - |
| Ingress Protection | IP67 |
| Ratings | DC |
| Panel Cutout Dimensions | 0.55"" (13.97mm) |
| Wavelength - Peak | - |
| Lens Transparency | Diffused |
| Lamp Color | Red |
| Panel Cutout Shape | Round |
| Lens Style | Round with Flat Top |
| Lens Size | 10.00mm Dia |
