B92.915LGB.00204
SSD 960GB M.2 TLC NVME 3.3VManufacturer: Apacer Memory America
Categories: Solid State Drives (SSDs), Hard Disk Drives (HDDs)
Quality Control: Learn More

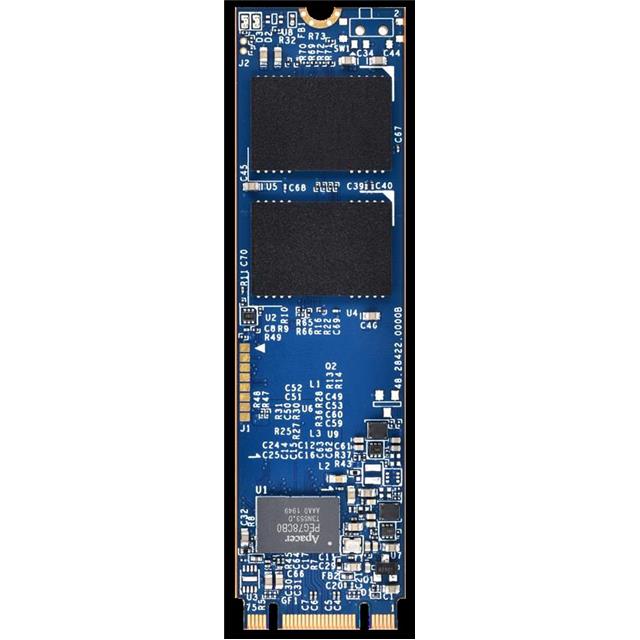

Apacer Memory America PV120-M280 series SSD, part number B92-915LGB-00204, is a 960GB NVMe M.2 module utilizing TLC NAND flash memory. This high-performance solid-state drive operates at 3.3V, drawing a maximum current of 755mA. Measuring 80.00mm x 22.00mm x 3.88mm, it offers sequential read speeds of up to 1.8GB/s and sequential write speeds of up to 1.295GB/s. The module operates within a temperature range of 0°C to 70°C and is supplied in bulk packaging. This component is suitable for applications in industrial computing, networking, and data storage systems requiring reliable and high-speed data access.
Additional Information
Series: PV120-M280RoHS Status: ROHS3 CompliantManufacturer Lead Time: 4 week(s)Product Status: Not For New DesignsPackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Size / Dimension | 80.00mm x 22.00mm x 3.88mm |
| Memory Size | 960GB |
| Memory Type | Solid State Drive (SSD) FLASH - NAND (TLC) |
| Type | NVMe |
| Weight | - |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply | 3.3V |
| Current - Max | 755mA |
| Form Factor | M.2 Module |
| Speed - Read | 1.8GB/s |
| Speed - Write | 1.295GB/s |
