APSDM064GN2WN-ETM1G
SSD 64GB SATA DOM MLC SATAIII 5VManufacturer: Apacer Memory America
Categories: Solid State Drives (SSDs), Hard Disk Drives (HDDs)
Quality Control: Learn More

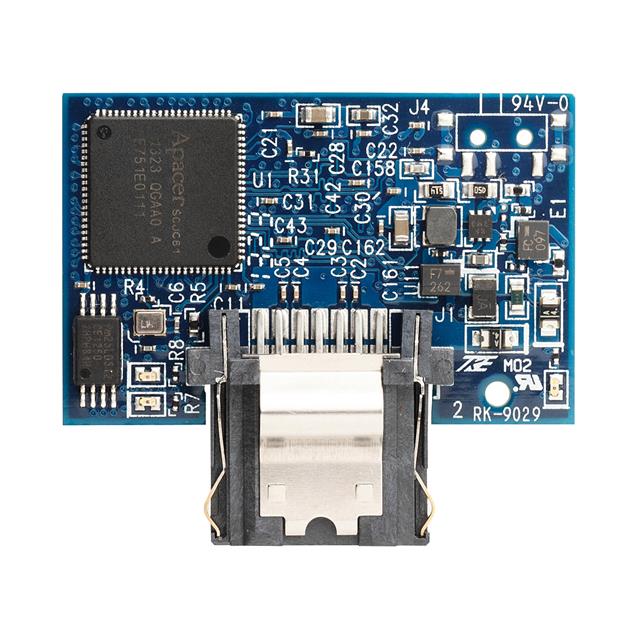

Apacer Memory America SDM5A-M 7P/180D LP5H APSDM064GN2WN-ETM1G is a 64GB MLC NAND Solid State Drive (SSD) Disk-On-Module (DOM). This SATA III interface device operates at 5V with a maximum current draw of 225mA. Measuring 33.00mm x 29.30mm x 8.85mm, it offers sequential read speeds of up to 425MB/s and sequential write speeds of up to 80MB/s. This component is designed for embedded systems and industrial computing applications, operating within a temperature range of 0°C to 70°C. The APSDM064GN2WN-ETM1G is supplied in bulk packaging.
Additional Information
Series: SDM5A-M 7P/180D LP5HRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Size / Dimension | 33.00mm x 29.30mm x 8.85mm |
| Memory Size | 64GB |
| Memory Type | Solid State Drive (SSD) FLASH - NAND (MLC) |
| Type | SATA III |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply | 5V |
| Current - Max | 225mA |
| Form Factor | Disk-On-Module, SATA DOM |
| Speed - Read | 425MB/s |
| Speed - Write | 80MB/s |
