APSDM032GM1HN-1TM
SSD 32GB MSATA MLC SATAIII 3.3VManufacturer: Apacer Memory America
Categories: Solid State Drives (SSDs), Hard Disk Drives (HDDs)
Quality Control: Learn More
The Apacer Memory America mSATA H1-M series APSDM032GM1HN-1TM is a 32GB MLC NAND Solid State Drive designed for embedded systems and industrial applications. This mSATA form factor drive utilizes the SATA III interface, offering read speeds up to 520MB/s and write speeds up to 180MB/s. It operates at a standard 3.3V supply voltage with a typical maximum current draw of 415mA. The compact dimensions of 50.80mm x 29.85mm x 1.00mm make it suitable for space-constrained designs. Operating within a temperature range of 0°C to 70°C, this component is commonly found in networking equipment, industrial automation, and medical devices.
Additional Information
Series: mSATA H1-MRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Size / Dimension | 50.80mm x 29.85mm x 1.00mm |
| Memory Size | 32GB |
| Memory Type | Solid State Drive (SSD) FLASH - NAND (MLC) |
| Type | SATA III |
| Weight | - |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply | 3.3V |
| Current - Max | 415mA (Typ) |
| Form Factor | mSATA |
| Speed - Read | 520MB/s |
| Speed - Write | 180MB/s |
Request a Quote
Clients Also Buy
APSDM032GM1HN-2TM
SSD 32GB MSATA MLC SATA III 3.3V

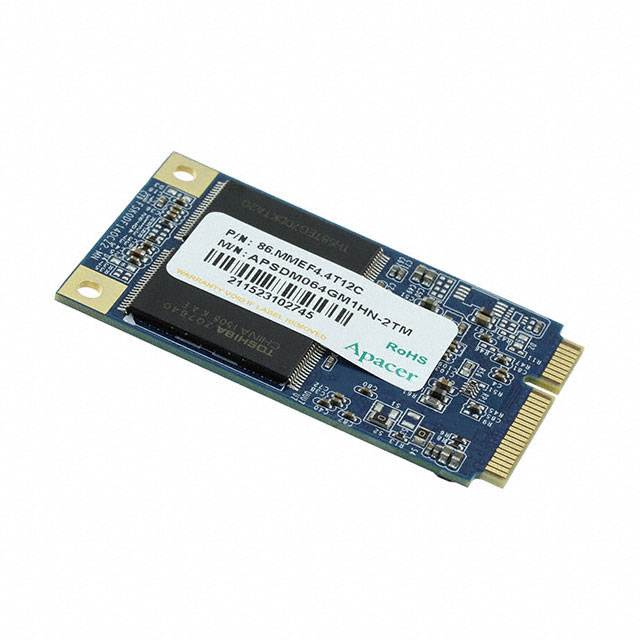

APSDM064GM1HN-2TM
SSD 64GB MSATA MLC SATA III 3.3V

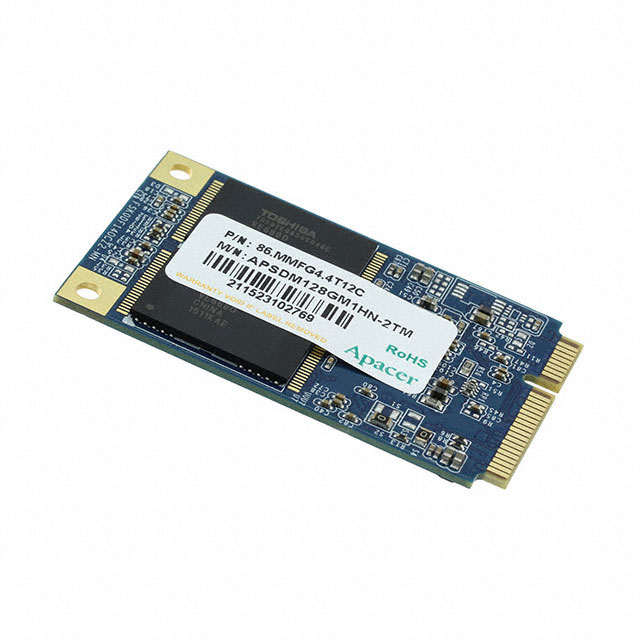

APSDM128GM1HN-2TM
