APSDM016GL2AN-ATMG
SSD 16GB MLC SATA III 5VManufacturer: Apacer Memory America
Categories: Solid State Drives (SSDs), Hard Disk Drives (HDDs)
Quality Control: Learn More

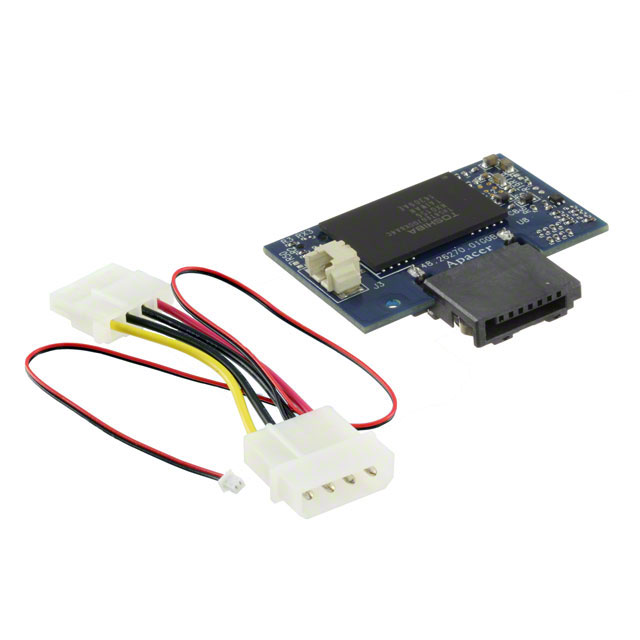

Apacer Memory America's SDM5A-M 7P/180D series APSDM016GL2AN-ATMG is a 16GB MLC NAND SATA III Solid State Drive. This drive operates at a 5V supply voltage with a maximum current draw of 210mA. Featuring a compact 33.00mm x 29.3 mm x 1.00mm footprint, it delivers sequential read speeds of up to 360MB/s and sequential write speeds up to 40MB/s. The APSDM016GL2AN-ATMG is designed for applications within industrial automation, networking, and embedded systems.
Additional Information
Series: SDM5A-M 7P/180DRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Size / Dimension | 33.00mm x 29.3 mm x 1.00mm |
| Memory Size | 16GB |
| Memory Type | Solid State Drive (SSD) FLASH - NAND (MLC) |
| Type | SATA III |
| Weight | - |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply | 5V |
| Current - Max | 210mA |
| Form Factor | - |
| Speed - Read | 360MB/s |
| Speed - Write | 40MB/s |
Request a Quote
Clients Also Buy
APSDM016GN2WN-PTM1G
SSD 16GB SATA DOM MLC SATAIII 5V

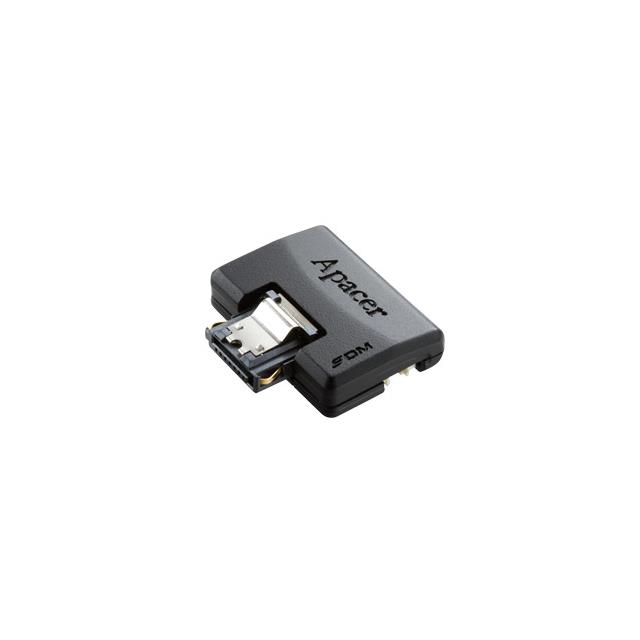

APSDM016GM2WN-PTM1G
