APM2T42P100016GAN-HTM1
SSD 16GB M.2 MLC SATA III 3.3VManufacturer: Apacer Memory America
Categories: Solid State Drives (SSDs), Hard Disk Drives (HDDs)
Quality Control: Learn More
The Apacer Memory America P100-M series APM2T42P100016GAN-HTM1 is a 16GB M.2 SATA III Solid State Drive (SSD) utilizing MLC NAND flash memory. This module operates at a 3.3V supply voltage with a typical maximum current draw of 300mA. Engineered for robust performance, it offers sequential read speeds of up to 215MB/s and write speeds of up to 150MB/s. The M.2 2242 form factor, measuring 42.00mm x 22.00mm x 3.65mm, is suitable for compact system designs. This component finds application in industrial computing, embedded systems, and networking equipment where reliable data storage is critical. The operating temperature range is from 0°C to 70°C.
Additional Information
Series: P100-MRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Size / Dimension | 42.00mm x 22.00mm x 3.65mm |
| Memory Size | 16GB |
| Memory Type | Solid State Drive (SSD) FLASH - NAND (MLC) |
| Type | SATA III |
| Weight | - |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply | 3.3V |
| Current - Max | 300mA (Typ) |
| Form Factor | M.2 Module |
| Speed - Read | 215MB/s |
| Speed - Write | 150MB/s |
Request a Quote
Clients Also Buy

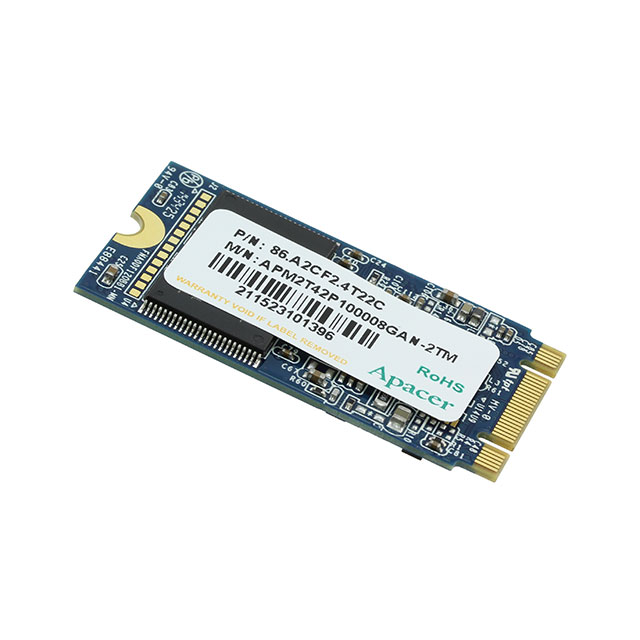

APM2T42P100008GAN-2TM
SSD 8GB M.2 MLC SATA III 3.3V

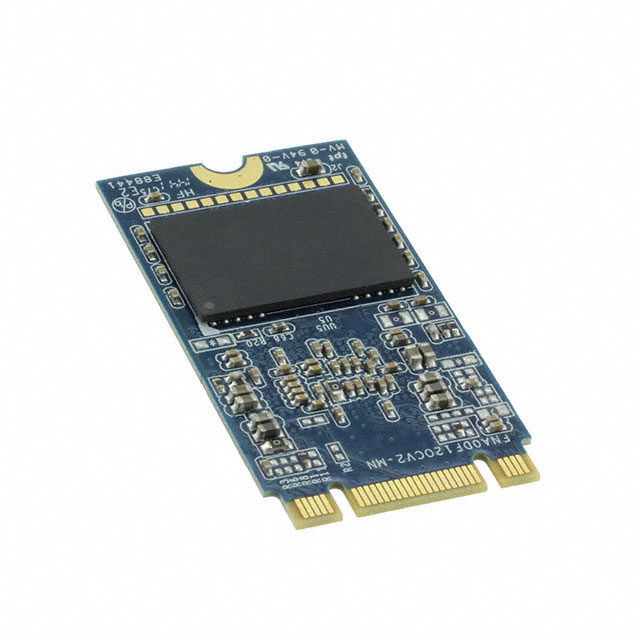

APM2T42P100064GAN-1TM
