APM016GMFFN-4BTM1W
SSD 16GB MSATA MLC SATA III 3.3VManufacturer: Apacer Memory America
Categories: Solid State Drives (SSDs), Hard Disk Drives (HDDs)
Quality Control: Learn More
The Apacer Memory America SM210-300 series APM016GMFFN-4BTM1W is a 16GB mSATA Solid State Drive featuring MLC NAND flash technology. This component operates with a SATA III interface and a 3.3V supply voltage, drawing a maximum current of 270mA. Its compact form factor, measuring 50.80mm x 29.85mm x 3.80mm, makes it suitable for space-constrained applications. With sequential read speeds up to 215MB/s and write speeds up to 50MB/s, it provides efficient data transfer. The operating temperature range of -40°C to 85°C ensures reliable performance in demanding environments. This drive is commonly deployed in industrial computing, embedded systems, and networking equipment.
Additional Information
Series: SM210-300RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Size / Dimension | 50.80mm x 29.85mm x 3.80mm |
| Memory Size | 16GB |
| Memory Type | Solid State Drive (SSD) FLASH - NAND (MLC) |
| Type | SATA III |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 3.3V |
| Current - Max | 270mA |
| Form Factor | mSATA |
| Speed - Read | 215MB/s |
| Speed - Write | 50MB/s |
Request a Quote
Clients Also Buy

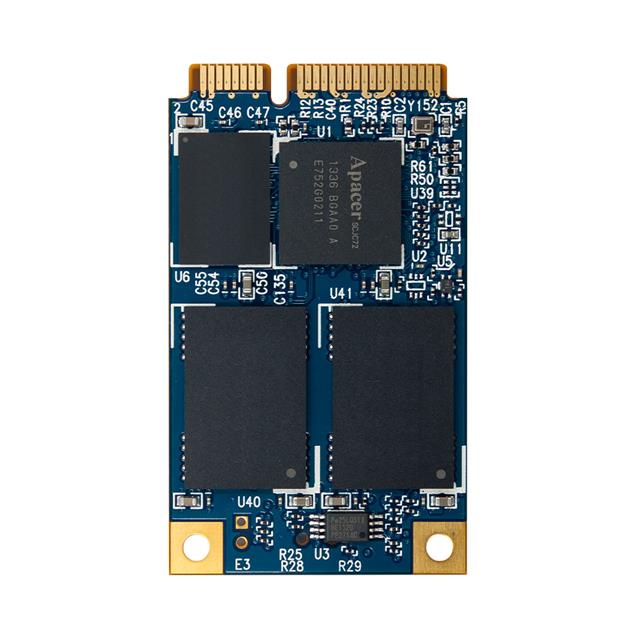

APM008GMFFN-6BTM1W
