AP-FD25C22E0016GS-3T
SSD 16GB 2.5"" SLC ATA 5VManufacturer: Apacer Memory America
Categories: Solid State Drives (SSDs), Hard Disk Drives (HDDs)
Quality Control: Learn More

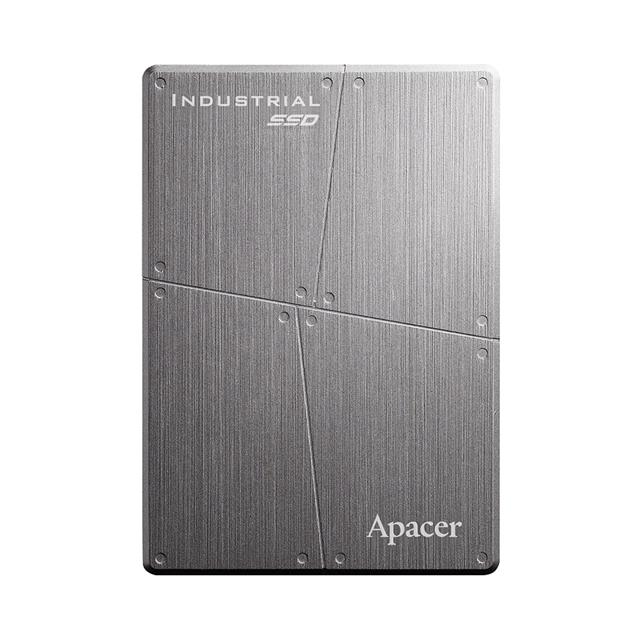

Apacer Memory America AFD257 series SLC ATA Solid State Drive, part number AP-FD25C22E0016GS-3T. This 16GB, 2.5-inch form factor drive utilizes Single-Level Cell (SLC) NAND flash technology for enhanced endurance and performance. Operating at a 5V supply voltage with a typical maximum current draw of 240mA, it features read speeds up to 100MB/s and write speeds up to 95MB/s. The drive has dimensions of 100.00mm x 69.90mm x 9.30mm and an operating temperature range of 0°C to 70°C. Commonly deployed in industrial automation, embedded systems, and networking infrastructure, this component is supplied in bulk packaging.
Additional Information
Series: AFD257RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Size / Dimension | 100.00mm x 69.90mm x 9.30mm |
| Memory Size | 16GB |
| Memory Type | Solid State Drive (SSD) FLASH - NAND (SLC) |
| Type | ATA |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply | 5V |
| Current - Max | 240mA (Typ) |
| Form Factor | 2.5"" |
| Speed - Read | 100MB/s |
| Speed - Write | 95MB/s |
