SM881K04TF
SOLAR CELL G3 THIN 2.76V 764.3MWManufacturer: ANYSOLAR Ltd
Categories: Solar Cells
Quality Control: Learn More

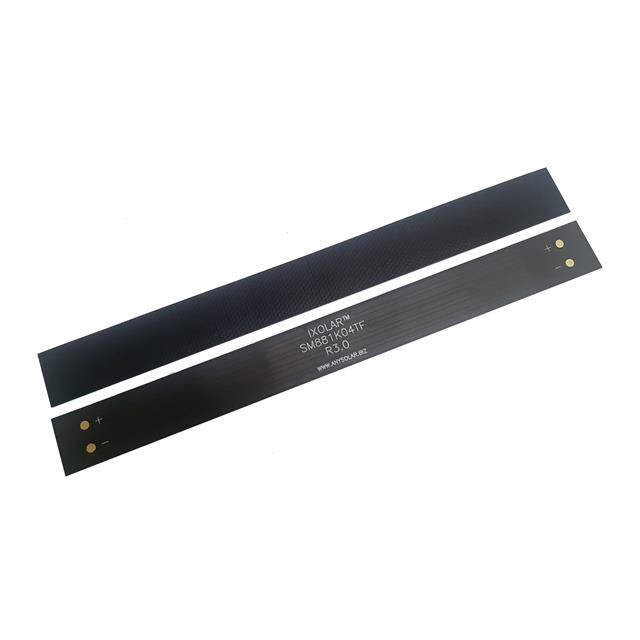

ANYSOLAR Ltd IXOLAR™ SM881K04TF is a monocrystalline thin-film solar cell designed for efficient energy harvesting. This component delivers a maximum power output of 764 mW with a voltage at maximum power (Vmpp) of 2.23 V and a current at maximum power (Impp) of 342 mA. The open-circuit voltage (Voc) is rated at 2.76 V, and the short-circuit current (Isc) is 365 mA. Operating within a temperature range of -40°C to 90°C, this cell is presented in bulk packaging. Its physical dimensions are 200.00mm in length, 20.00mm in width, and 1.50mm in height. Applications for this component span portable electronics, IoT devices, and off-grid power solutions.
Additional Information
Series: IXOLAR™RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Cells |
| Size / Dimension | 7.874"" L x 0.787"" W x 0.059"" H (200.00mm x 20.00mm x 1.50mm) |
| Type | Monocrystalline |
| Operating Temperature | -40°C ~ 90°C |
| Voltage @ Pmpp | 2.23 V |
| Current @ Pmpp | 342 mA |
| Voltage - Open Circuit | 2.76 V |
| Current - Short Circuit (Isc) | 365 mA |
| Power (Watts) - Max | 764 mW |
