SM232K10L
MONOCRYST SOLAR CELL 5.07W 6.91VManufacturer: ANYSOLAR Ltd
Categories: Solar Cells
Quality Control: Learn More

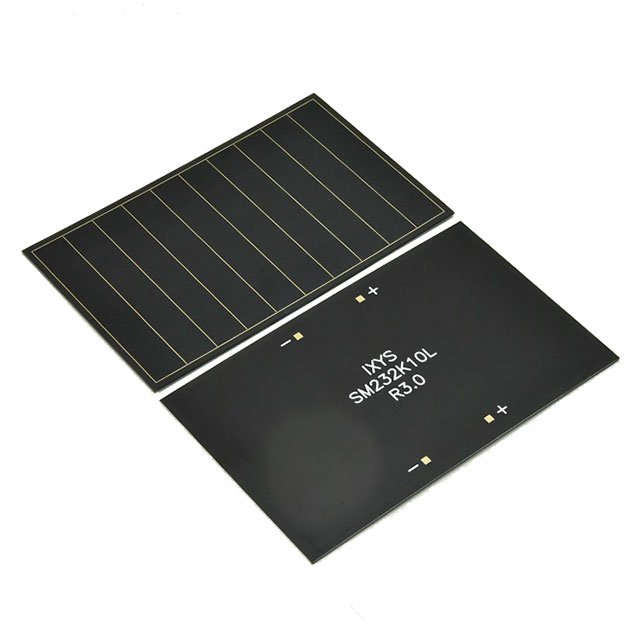

The ANYSOLAR Ltd IXOLAR™ SM232K10L is a monocrystalline solar cell delivering 5.07 W maximum power. This component features an open-circuit voltage (Voc) of 6.91 V and a voltage at maximum power (Vmp) of 5.58 V. The current at maximum power (Imp) is 909 mA, with a short-circuit current (Isc) of 968 mA. Operating across a temperature range of -40°C to 90°C, the SM232K10L is packaged as individual cells in bulk. Its dimensions are 215.0 mm x 132.0 mm x 2.0 mm. This solar cell is suitable for applications in renewable energy systems and portable power solutions.
Additional Information
Series: IXOLAR™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Cells |
| Size / Dimension | 8.46"" L x 5.20"" W x 0.08"" H (215.0mm x 132.0mm x 2.0mm) |
| Type | Monocrystalline |
| Operating Temperature | -40°C ~ 90°C |
| Voltage @ Pmpp | 5.58 V |
| Current @ Pmpp | 909 mA |
| Voltage - Open Circuit | 6.91 V |
| Current - Short Circuit (Isc) | 968 mA |
| Power (Watts) - Max | 5.07 W |
