SLPN005H10L
MONOCRYSTL SOLAR CELL 5.39W 6.3VManufacturer: ANYSOLAR Ltd
Categories: Solar Cells
Quality Control: Learn More

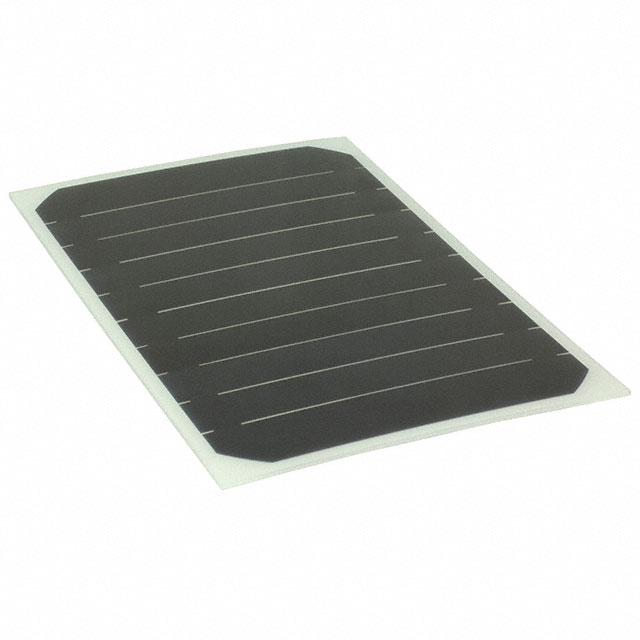

ANYSOLAR Ltd IXOLAR™ SLPN005H10L is a monocrystalline solar cell engineered for efficient power generation. This component delivers a maximum power output of 5.39 W at a voltage of 5.5 V (Vmp). The cell features a short-circuit current (Isc) of 1 A and operates at a current of 980 mA (Impp) under maximum power conditions. Its open-circuit voltage (Voc) is rated at 6.3 V. The SLPN005H10L measures 223.00mm in length, 143.00mm in width, and 2.00mm in height, supplied in tray packaging. This solar cell is suitable for a range of applications including portable electronics, off-grid power systems, and IoT devices requiring reliable solar energy harvesting.
Additional Information
Series: IXOLAR™RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Cells |
| Size / Dimension | 8.780"" L x 5.630"" W x 0.079"" H (223.00mm x 143.00mm x 2.00mm) |
| Type | Monocrystalline |
| Operating Temperature | - |
| Voltage @ Pmpp | 5.5 V |
| Current @ Pmpp | 980 mA |
| Voltage - Open Circuit | 6.3 V |
| Current - Short Circuit (Isc) | 1 A |
| Power (Watts) - Max | 5.39 W |
