SLMD960H12L
MONOCRYST SOLAR CELL 218MW 7.56VManufacturer: ANYSOLAR Ltd
Categories: Solar Cells
Quality Control: Learn More

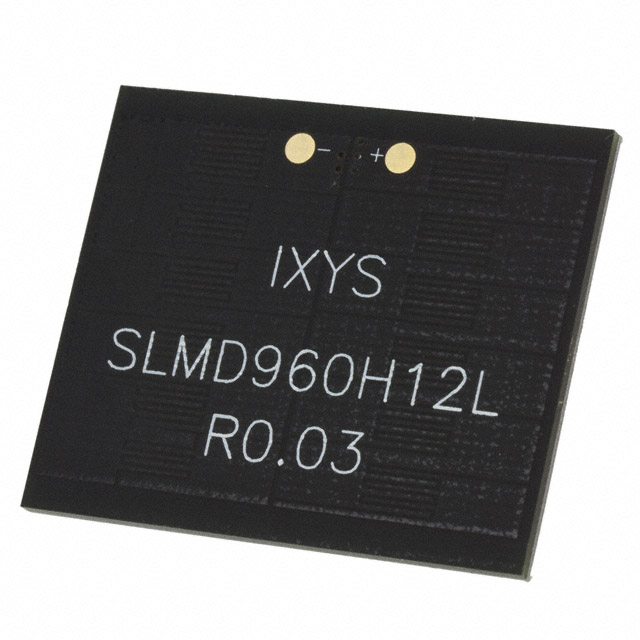

ANYSOLAR Ltd IXOLAR™ SLMD960H12L is a monocrystalline solar cell engineered for efficient energy conversion. This component delivers a maximum power output of 218 mW with a typical operating voltage at maximum power point (Vmpp) of 6.06 V and an open-circuit voltage (Voc) of 7.56 V. The cell exhibits a short-circuit current (Isc) of 40 mA and a current at maximum power point (Impp) of 36 mA. Packaged as a single cell within a tube, it measures 1.378" (35.00mm) in length, 1.654" (42.00mm) in width, and 0.079" (2.00mm) in height. This component is suitable for applications in portable electronics, solar-powered sensors, and small-scale renewable energy systems.
Additional Information
Series: IXOLAR™RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | Cell (12) |
| Size / Dimension | 1.378"" L x 1.654"" W x 0.079"" H (35.00mm x 42.00mm x 2.00mm) |
| Type | Monocrystalline |
| Operating Temperature | - |
| Voltage @ Pmpp | 6.06 V |
| Current @ Pmpp | 36 mA |
| Voltage - Open Circuit | 7.56 V |
| Current - Short Circuit (Isc) | 40 mA |
| Power (Watts) - Max | 218 mW |
