SLMD960H09L
MONOCRYST SOLAR CELL 162MW 5.67VManufacturer: ANYSOLAR Ltd
Categories: Solar Cells
Quality Control: Learn More

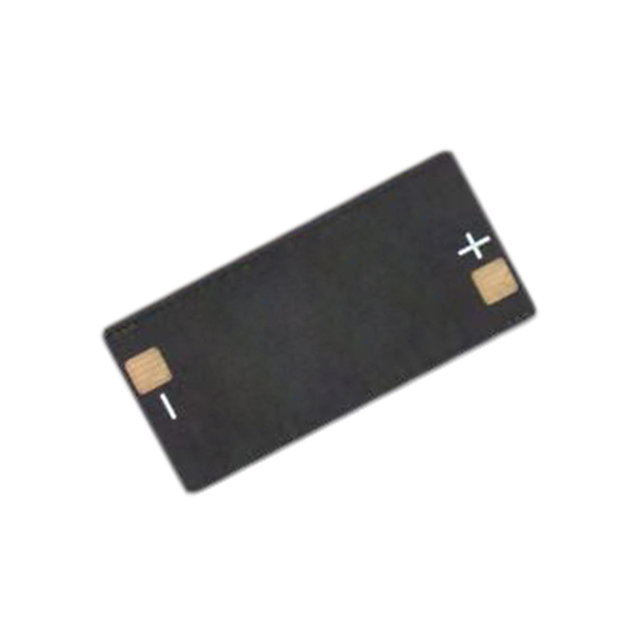

The ANYSOLAR Ltd IXOLAR™ SLMD960H09L is a monocrystalline solar cell engineered for high-efficiency energy conversion. This component delivers a maximum power output of 162 mW with an open-circuit voltage of 5.67 V. Under peak power conditions (Pmpp), it operates at 4.5 V and draws 36 mA, with a short-circuit current (Isc) of 40 mA. The cell is presented in a Cell (9) package, with dimensions of 44.50mm x 21.50mm x 1.30mm (1.752" L x 0.846" W x 0.051" H). This component finds application in compact power solutions and portable electronics requiring reliable solar energy harvesting. Supplied in tray packaging, the SLMD960H09L is suitable for integration into various electronic designs.
Additional Information
Series: IXOLAR™RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Cell (9) |
| Size / Dimension | 1.752"" L x 0.846"" W x 0.051"" H (44.50mm x 21.50mm x 1.30mm) |
| Type | Monocrystalline |
| Operating Temperature | - |
| Voltage @ Pmpp | 4.5 V |
| Current @ Pmpp | 36 mA |
| Voltage - Open Circuit | 5.67 V |
| Current - Short Circuit (Isc) | 40 mA |
| Power (Watts) - Max | 162 mW |
