SLMD600H10L
MONOCRYSTL SOLAR CELL 111MW 6.3VManufacturer: ANYSOLAR Ltd
Categories: Solar Cells
Quality Control: Learn More

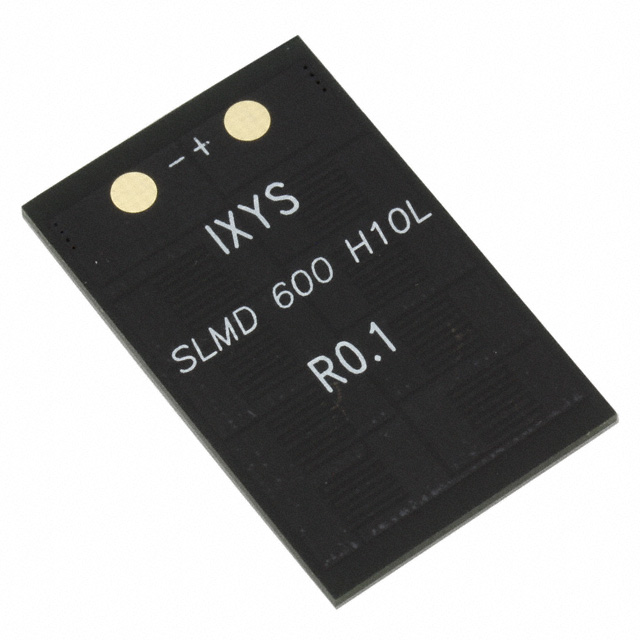

ANYSOLAR Ltd IXOLAR™ SLMD600H10L is a monocrystalline solar cell delivering 111 mW maximum power. This component operates with a voltage at maximum power (Vmpp) of 5.01 V and an open-circuit voltage (Voc) of 6.3 V. The cell exhibits a current at maximum power point (Impp) of 22.3 mA and a short-circuit current (Isc) of 25 mA. Measuring 22.00 mm in length, 35.00 mm in width, and 2.00 mm in height, it is supplied in a tray package containing ten individual cells. This solar cell is suitable for applications in portable electronics, remote sensing, and IoT devices where efficient solar energy conversion is critical.
Additional Information
Series: IXOLAR™RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Cell (10) |
| Size / Dimension | 0.866"" L x 1.378"" W x 0.079"" H (22.00mm x 35.00mm x 2.00mm) |
| Type | Monocrystalline |
| Operating Temperature | - |
| Voltage @ Pmpp | 5.01 V |
| Current @ Pmpp | 22.3 mA |
| Voltage - Open Circuit | 6.3 V |
| Current - Short Circuit (Isc) | 25 mA |
| Power (Watts) - Max | 111 mW |
