SLMD600H10
MONOCRYSTL SOLAR CELL 111MW 6.3VManufacturer: ANYSOLAR Ltd
Categories: Solar Cells
Quality Control: Learn More

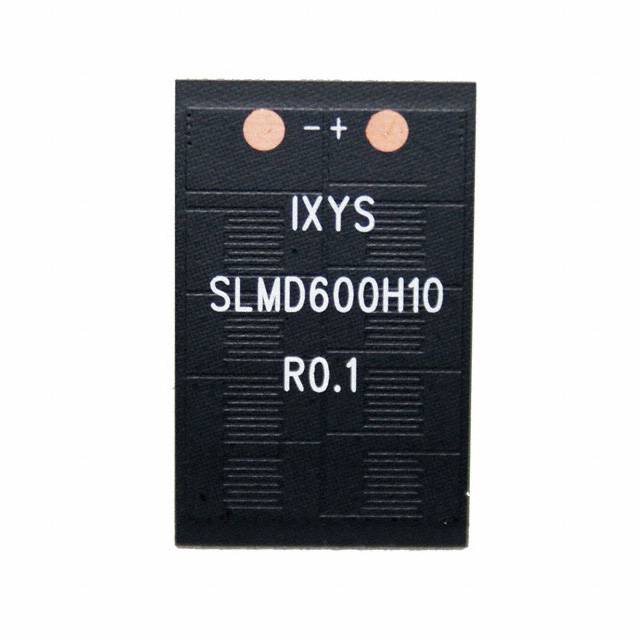

The ANYSOLAR Ltd IXOLAR™ SLMD600H10 is a monocrystalline solar cell delivering a maximum power output of 111 mW. This component operates with a voltage at maximum power point (Vmp) of 5.01 V and a current at maximum power point (Imp) of 22.3 mA. The open-circuit voltage (Voc) is 6.3 V, and the short-circuit current (Isc) is 25 mA. Measuring 35.00 mm x 22.00 mm x 2.00 mm, the cell is supplied in tube packaging. Its robust design and efficient power conversion make it suitable for applications in renewable energy, portable electronics, and IoT devices.
Additional Information
Series: IXOLAR™RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | Cell (10) |
| Size / Dimension | 1.378"" L x 0.276"" W x 0.079"" H (35.00mm x 22.00mm x 2.00mm) |
| Type | Monocrystalline |
| Operating Temperature | - |
| Voltage @ Pmpp | 5.01 V |
| Current @ Pmpp | 22.3 mA |
| Voltage - Open Circuit | 6.3 V |
| Current - Short Circuit (Isc) | 25 mA |
| Power (Watts) - Max | 111 mW |
