SLMD481H12L
MONOCRYST SOLAR CELL 1.08W 7.56VManufacturer: ANYSOLAR Ltd
Categories: Solar Cells
Quality Control: Learn More

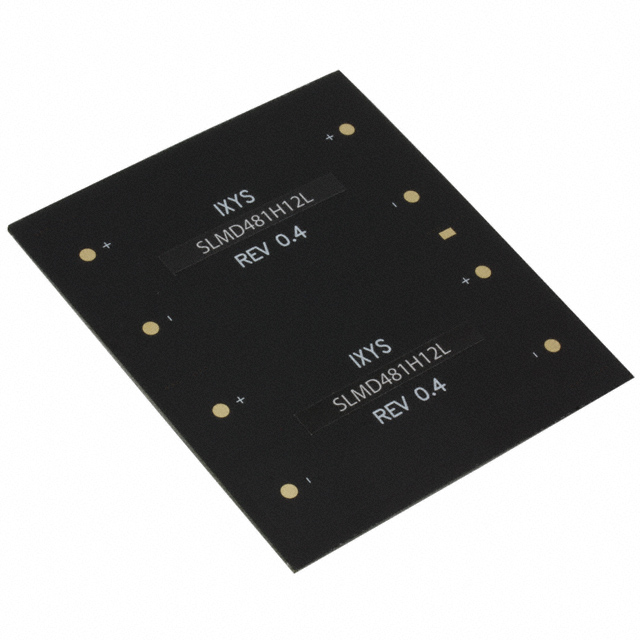

ANYSOLAR Ltd IXOLAR™ SLMD481H12L is a monocrystalline solar cell delivering a maximum power output of 1.08 W. This component features a typical open-circuit voltage (Voc) of 7.56 V and a voltage at maximum power point (Vmpp) of 6.06 V. The current at maximum power point (Impp) is 178 mA, with a short-circuit current (Isc) of 200 mA. The cell measures 90.00 mm in length, 79.00 mm in width, and 2.00 mm in height. This product is supplied in Bulk packaging and is suitable for applications in portable electronics, off-grid power systems, and IoT devices.
Additional Information
Series: IXOLAR™RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Cell (24) |
| Size / Dimension | 3.543"" L x 3.110"" W x 0.079"" H (90.00mm x 79.00mm x 2.00mm) |
| Type | Monocrystalline |
| Operating Temperature | - |
| Voltage @ Pmpp | 6.06 V |
| Current @ Pmpp | 178 mA |
| Voltage - Open Circuit | 7.56 V |
| Current - Short Circuit (Isc) | 200 mA |
| Power (Watts) - Max | 1.08 W |
