SLMD480H12L
MONOCRYST SOLAR CELL 109MW 7.56VManufacturer: ANYSOLAR Ltd
Categories: Solar Cells
Quality Control: Learn More

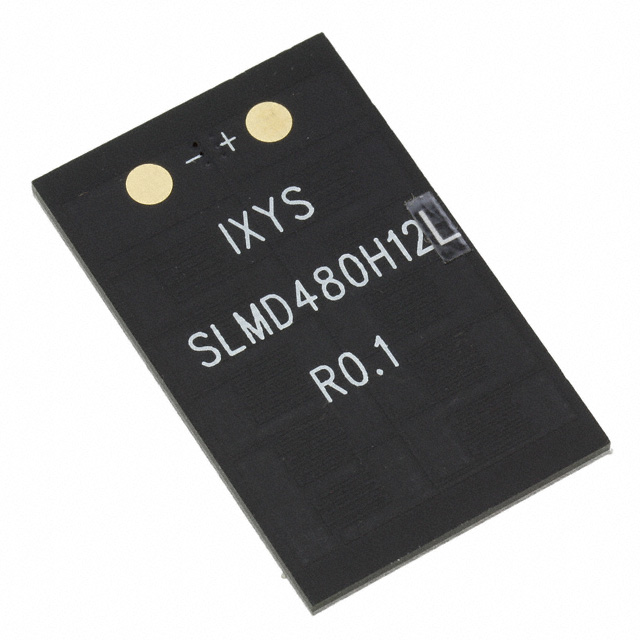

ANYSOLAR Ltd IXOLAR™ SLMD480H12L is a monocrystalline solar cell delivering 109 mW maximum power. This component features a voltage at maximum power point (Vmpp) of 6.06 V and an open-circuit voltage (Voc) of 7.56 V. The current at maximum power point (Impp) is 18 mA, with a short-circuit current (Isc) of 20 mA. The cell measures 22.00 mm in length, 35.00 mm in width, and 2.00 mm in height, packaged in a tube. This solar cell is suitable for applications in renewable energy systems and electronic devices requiring portable power generation.
Additional Information
Series: IXOLAR™RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | Cell (12) |
| Size / Dimension | 0.866"" L x 1.378"" W x 0.079"" H (22.00mm x 35.00mm x 2.00mm) |
| Type | Monocrystalline |
| Operating Temperature | - |
| Voltage @ Pmpp | 6.06 V |
| Current @ Pmpp | 18 mA |
| Voltage - Open Circuit | 7.56 V |
| Current - Short Circuit (Isc) | 20 mA |
| Power (Watts) - Max | 109 mW |
