SLMD242H10L
MONOCRYSTL SOLAR CELL 4.45W 6.3VManufacturer: ANYSOLAR Ltd
Categories: Solar Cells
Quality Control: Learn More

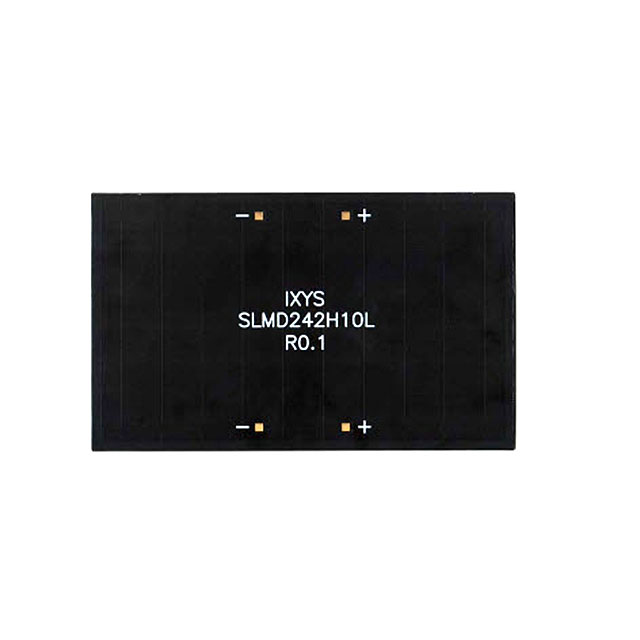

ANYSOLAR Ltd IXOLAR™ SLMD242H10L is a monocrystalline solar cell delivering a maximum power output of 4.45W at 5V. This component features an open-circuit voltage of 6.3V and a short-circuit current (Isc) of 1A, with a current at maximum power point (Pmpp) of 890mA. The cell dimensions are 214.50mm x 131.60mm x 2.00mm. It is supplied in Tray packaging. The SLMD242H10L is suitable for applications in renewable energy and power generation systems requiring efficient photovoltaic conversion.
Additional Information
Series: IXOLAR™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Cell (10) |
| Size / Dimension | 8.445"" L x 5.181"" W x 0.079"" H (214.50mm x 131.60mm x 2.00mm) |
| Type | Monocrystalline |
| Operating Temperature | - |
| Voltage @ Pmpp | 5 V |
| Current @ Pmpp | 890 mA |
| Voltage - Open Circuit | 6.3 V |
| Current - Short Circuit (Isc) | 1 A |
| Power (Watts) - Max | 4.45 W |
