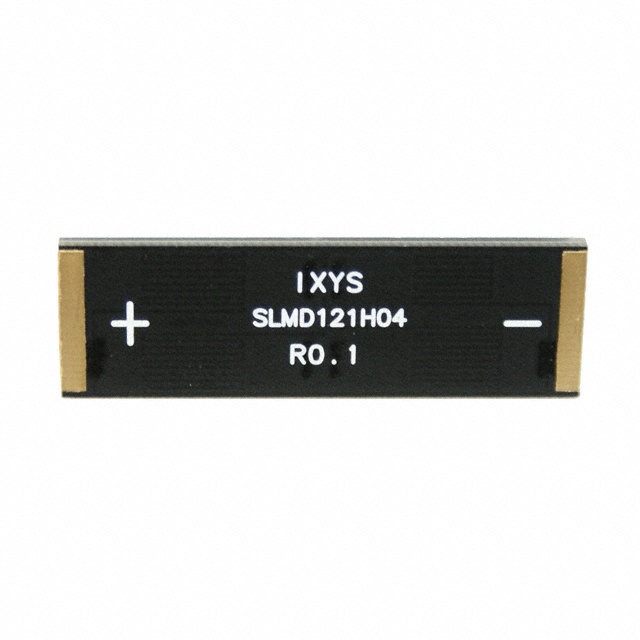

SLMD121H4
MONOCRYSTL SOLAR CELL 89MW 2.52VManufacturer: ANYSOLAR Ltd
Categories: Solar Cells
Quality Control: Learn More
ANYSOLAR Ltd IXOLAR™ SLMD121H4 is a monocrystalline solar cell designed for efficient power generation. This component delivers a maximum power output of 89 mW with a voltage of 2 V at its peak power point (Pmpp). The open-circuit voltage (Voc) is rated at 2.52 V, and the short-circuit current (Isc) is 50 mA, with a current at Pmpp of 44.6 mA. The cell is housed in a single unit package, measuring 43.00mm in length, 14.00mm in width, and 2.00mm in height. Typically supplied in tube packaging, the SLMD121H4 finds application in portable electronics, IoT devices, and off-grid power solutions where compact and efficient solar energy harvesting is critical.
Additional Information
Series: IXOLAR™RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | Cell (4) |
| Size / Dimension | 1.693"" L x 0.551"" W x 0.079"" H (43.00mm x 14.00mm x 2.00mm) |
| Type | Monocrystalline |
| Operating Temperature | - |
| Voltage @ Pmpp | 2 V |
| Current @ Pmpp | 44.6 mA |
| Voltage - Open Circuit | 2.52 V |
| Current - Short Circuit (Isc) | 50 mA |
| Power (Watts) - Max | 89 mW |
