SLMD121H10L
MONOCRYSTL SOLAR CELL 223MW 6.3VManufacturer: ANYSOLAR Ltd
Categories: Solar Cells
Quality Control: Learn More

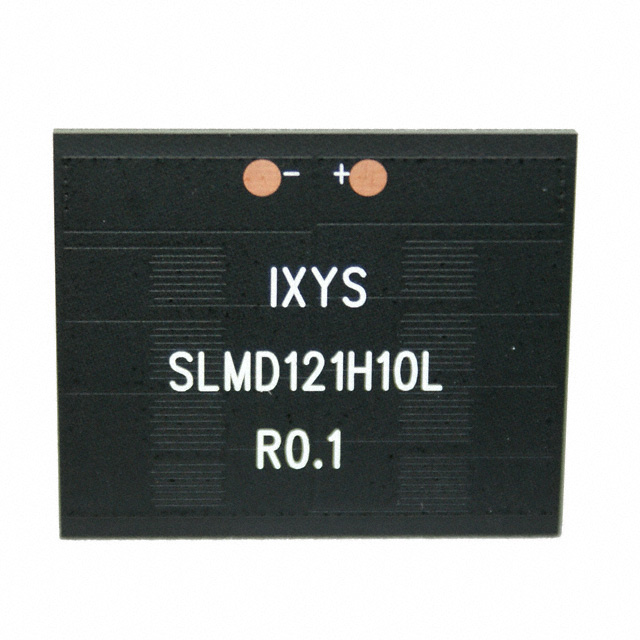

ANYSOLAR Ltd IXOLAR™ SLMD121H10L is a high-efficiency monocrystalline solar cell delivering 223 mW of maximum power. This component features a nominal open-circuit voltage of 6.3 V and a power point voltage of 5.01 V, with a current at maximum power point (Pmpp) of 44.6 mA. The short-circuit current (Isc) is rated at 50 mA. The cell measures 35.00mm in length, 42.00mm in width, and 2.00mm in height. This device is suitable for applications in renewable energy systems and portable power generation. The component is supplied in trays.
Additional Information
Series: IXOLAR™RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Cell (10) |
| Size / Dimension | 1.378"" L x 1.654"" W x 0.079"" H (35.00mm x 42.00mm x 2.00mm) |
| Type | Monocrystalline |
| Operating Temperature | - |
| Voltage @ Pmpp | 5.01 V |
| Current @ Pmpp | 44.6 mA |
| Voltage - Open Circuit | 6.3 V |
| Current - Short Circuit (Isc) | 50 mA |
| Power (Watts) - Max | 223 mW |
