SLMD121H08L
MONOCRYST SOLAR CELL 178MW 5.04VManufacturer: ANYSOLAR Ltd
Categories: Solar Cells
Quality Control: Learn More

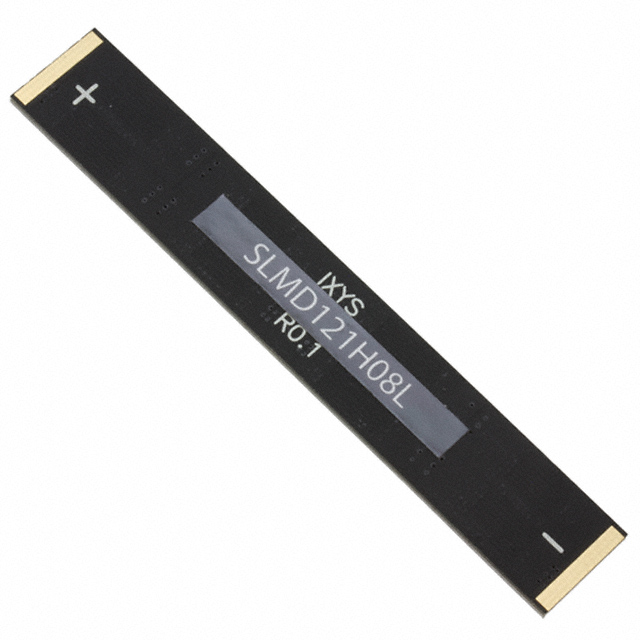

ANYSOLAR Ltd IXOLAR™ SLMD121H08L is a monocrystalline solar cell designed for power generation applications. This component delivers a maximum power output of 178 mW with a voltage at maximum power point (Vmpp) of 4 V. The open-circuit voltage (Voc) is rated at 5.04 V, and the current at maximum power point (Impp) is 44.6 mA, with a short-circuit current (Isc) of 50 mA. The cell measures 86.00mm in length, 14.00mm in width, and 0.079 inches in height. This component finds application in portable electronics, IoT devices, and off-grid power solutions. The SLMD121H08L is supplied in tray packaging.
Additional Information
Series: IXOLAR™RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Cell (8) |
| Size / Dimension | 3.386"" L x 0.551"" W x 0.079"" H (86.00mm x 14.00mm x 2.00mm) |
| Type | Monocrystalline |
| Operating Temperature | - |
| Voltage @ Pmpp | 4 V |
| Current @ Pmpp | 44.6 mA |
| Voltage - Open Circuit | 5.04 V |
| Current - Short Circuit (Isc) | 50 mA |
| Power (Watts) - Max | 178 mW |
