SLMD121H04L
MONOCRYSTL SOLAR CELL 89MW 2.52VManufacturer: ANYSOLAR Ltd
Categories: Solar Cells
Quality Control: Learn More

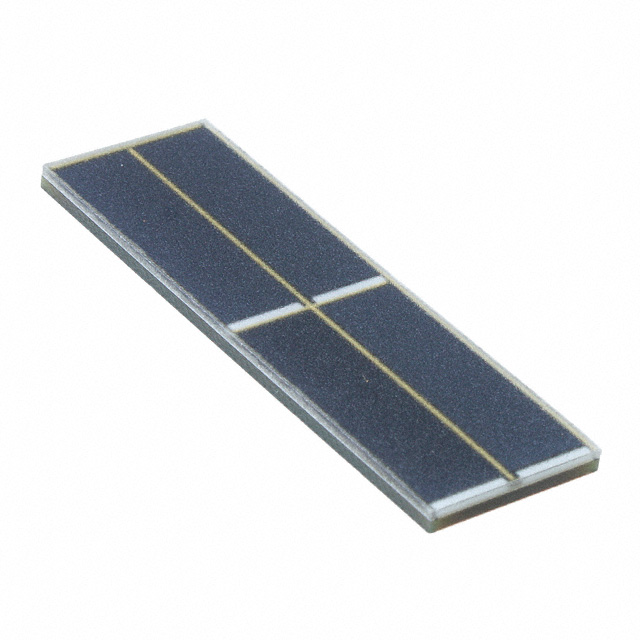

ANYSOLAR Ltd IXOLAR™ SLMD121H04L is a monocrystalline solar cell delivering 89 mW of power. This component features a nominal open-circuit voltage of 2.52 V and a voltage at maximum power point (Pmpp) of 2 V. The current at Pmpp is 44.6 mA, with a short-circuit current (Isc) of 50 mA. The cell measures 43.00 mm in length, 14.00 mm in width, and 2.00 mm in height. It is supplied in tray packaging. This component is suitable for applications in portable electronics, IoT devices, and off-grid power systems requiring efficient energy harvesting.
Additional Information
Series: IXOLAR™RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Cell (4) |
| Size / Dimension | 1.693"" L x 0.551"" W x 0.079"" H (43.00mm x 14.00mm x 2.00mm) |
| Type | Monocrystalline |
| Operating Temperature | - |
| Voltage @ Pmpp | 2 V |
| Current @ Pmpp | 44.6 mA |
| Voltage - Open Circuit | 2.52 V |
| Current - Short Circuit (Isc) | 50 mA |
| Power (Watts) - Max | 89 mW |
