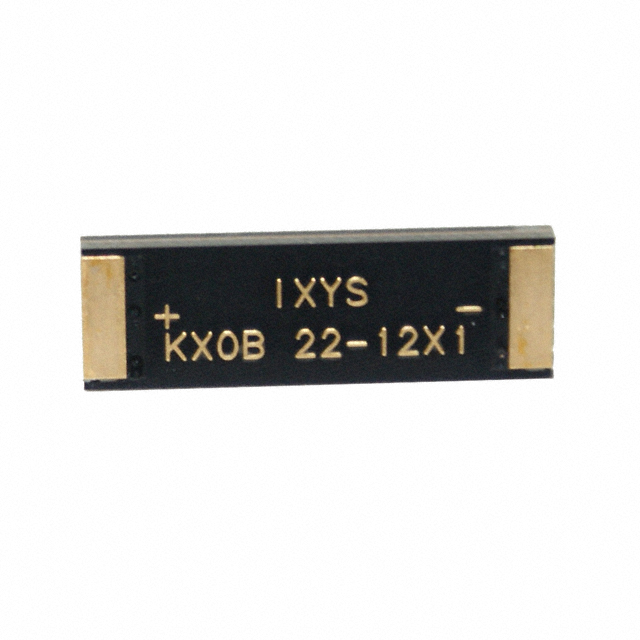

KXOB22-12X1
MONOCRYSTALLINE SOLAR CELL 630MVManufacturer: ANYSOLAR Ltd
Categories: Solar Cells
Quality Control: Learn More
ANYSOLAR Ltd IXOLAR™ KXOB22-12X1 is a monocrystalline solar cell designed for efficient energy conversion. This component offers a voltage at maximum power point (Vmpp) of 500 mV and a current at maximum power point (Impp) of 44.6 mA. The open-circuit voltage (Voc) is rated at 630 mV, with a short-circuit current (Isc) of 50 mA, providing a robust power generation capability. Its compact dimensions of 22.00mm x 7.00mm x 1.80mm make it suitable for space-constrained applications. Packaged in tubes, this cell is ideal for use in portable electronics, IoT devices, and off-grid power solutions where reliable solar energy harvesting is critical.
Additional Information
Series: IXOLAR™RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | Cells |
| Size / Dimension | 0.866"" L x 0.276"" W x 0.074"" H (22.00mm x 7.00mm x 1.80mm) |
| Type | Monocrystalline |
| Operating Temperature | - |
| Voltage @ Pmpp | 500 mV |
| Current @ Pmpp | 44.6 mA |
| Voltage - Open Circuit | 630 mV |
| Current - Short Circuit (Isc) | 50 mA |
