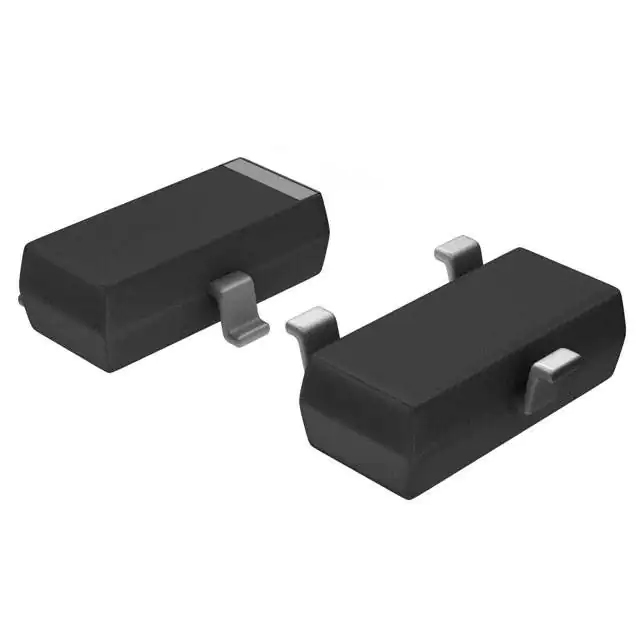

AS6004
P-CHANNEL ENHANCEMENT MODE MOSFEManufacturer: ANBON SEMICONDUCTOR (INT'L) LIMITED
Categories: Single FETs, MOSFETs
Quality Control: Learn More
P-Channel 60 V 4A (Ta) 1.5W (Ta) Surface Mount SOT-23-3L
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: 4 week(s)Product Status: ActivePackaging: Digi-Reel®Download Free CAD Model:%20LIMITED&mpn=AS6004&lbl=1&lbc=000000&q3=1)
Technical Details:
| Packaging | Digi-Reel® |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Mounting Type | Surface Mount |
| Operating Temperature | 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | P-Channel |
| Current - Continuous Drain (Id) @ 25°C | 4A (Ta) |
| Rds On (Max) @ Id, Vgs | 120mOhm @ 4A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 1.5W (Ta) |
| Vgs(th) (Max) @ Id | 3V @ 250µA |
| Supplier Device Package | SOT-23-3L |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 60 V |
| Gate Charge (Qg) (Max) @ Vgs | 25 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 930 pF @ 30 V |
Request a Quote
Clients Also Buy

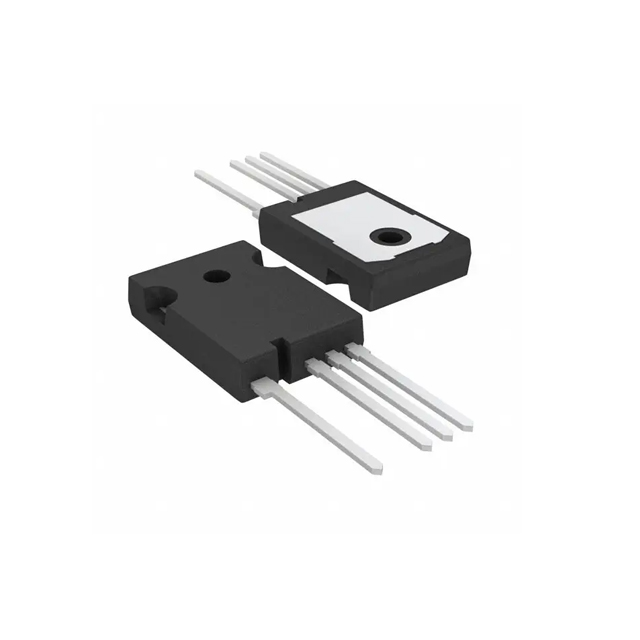

AS1M040120T
