1N4148W
400MW SURFACE MOUNT SWITCHING DIManufacturer: ANBON SEMICONDUCTOR (INT'L) LIMITED
Categories: Single Diodes
Quality Control: Learn More

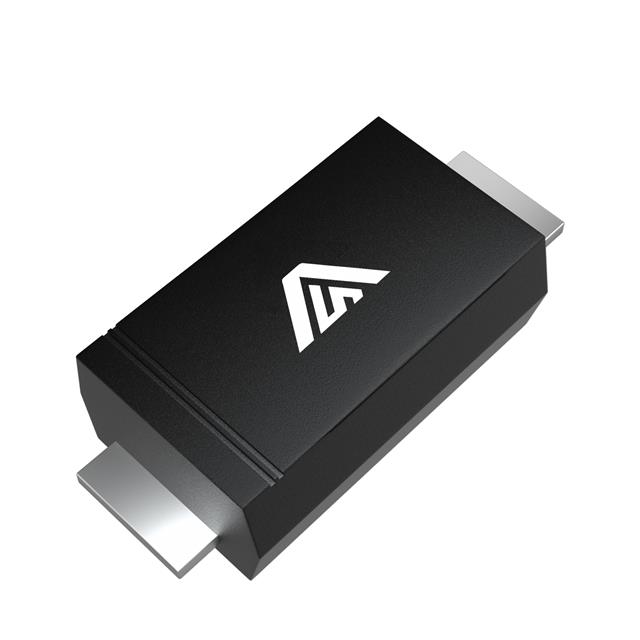

Diode 75 V 150mA Surface Mount SOD-123
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 4 week(s)Product Status: ActivePackaging: Digi-Reel®Download Free CAD Model:%20LIMITED&mpn=1N4148W&lbl=1&lbc=000000&q3=1)
Technical Details:
| Packaging | Digi-Reel® |
| Package / Case | SOD-123 |
| Mounting Type | Surface Mount |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | 4 ns |
| Technology | Standard |
| Capacitance @ Vr, F | 1.5pF @ 0V, 1MHz |
| Current - Average Rectified (Io) | 150mA |
| Supplier Device Package | SOD-123 |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Voltage - DC Reverse (Vr) (Max) | 75 V |
| Voltage - Forward (Vf) (Max) @ If | 1.25 V @ 150 mA |
| Current - Reverse Leakage @ Vr | 2.5 µA @ 75 V |
Request a Quote
