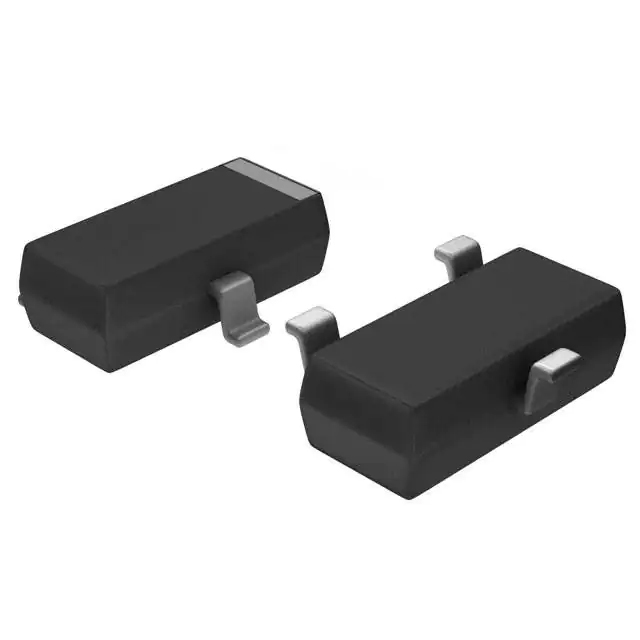

MMBT5401
HIGH VOLTAGE PNP TRANSISTORManufacturer: ANBON SEMICONDUCTOR (INT'L) LIMITED
Categories: Single Bipolar Transistors
Quality Control: Learn More
Bipolar (BJT) Transistor PNP 150 V 600 mA 300MHz 350 mW Surface Mount SOT-23
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 4 week(s)Product Status: ActivePackaging: Digi-Reel®Download Free CAD Model:%20LIMITED&mpn=MMBT5401&lbl=1&lbc=000000&q3=1)
Technical Details:
| Packaging | Digi-Reel® |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Mounting Type | Surface Mount |
| Transistor Type | PNP |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Vce Saturation (Max) @ Ib, Ic | 500mV @ 5mA, 50mA |
| Current - Collector Cutoff (Max) | 50nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 60 @ 10mA, 5V |
| Frequency - Transition | 300MHz |
| Supplier Device Package | SOT-23 |
| Current - Collector (Ic) (Max) | 600 mA |
| Voltage - Collector Emitter Breakdown (Max) | 150 V |
| Power - Max | 350 mW |
