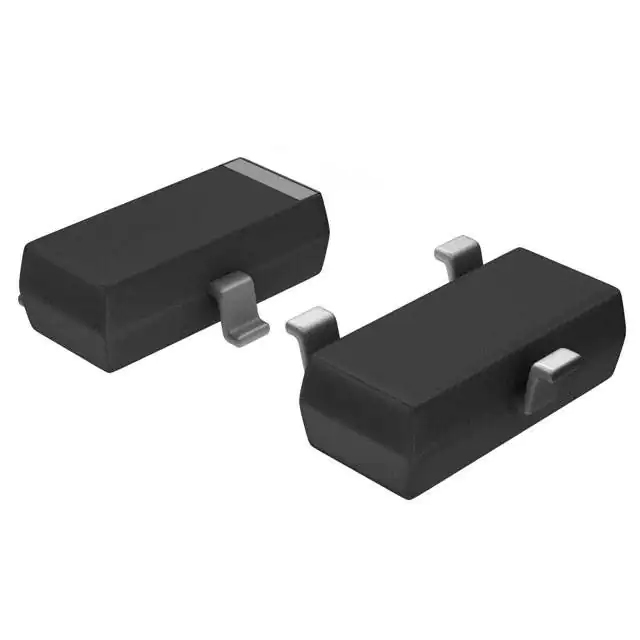

MMBT4403
600MA SILICON PNP EPITAXIAL PLANManufacturer: ANBON SEMICONDUCTOR (INT'L) LIMITED
Categories: Single Bipolar Transistors
Quality Control: Learn More
Bipolar (BJT) Transistor PNP 40 V 600 mA 200MHz 350 mW Surface Mount SOT-23-3L
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 4 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:%20LIMITED&mpn=MMBT4403&lbl=1&lbc=000000&q3=1)
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Mounting Type | Surface Mount |
| Transistor Type | PNP |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Vce Saturation (Max) @ Ib, Ic | 750mV @ 50mA, 500mA |
| Current - Collector Cutoff (Max) | 100nA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 100 @ 150mA, 2V |
| Frequency - Transition | 200MHz |
| Supplier Device Package | SOT-23-3L |
| Current - Collector (Ic) (Max) | 600 mA |
| Voltage - Collector Emitter Breakdown (Max) | 40 V |
| Power - Max | 350 mW |
