BC847B
PLASTIC ENCAPSULATE TRANSISTORSManufacturer: ANBON SEMICONDUCTOR (INT'L) LIMITED
Categories: Single Bipolar Transistors
Quality Control: Learn More

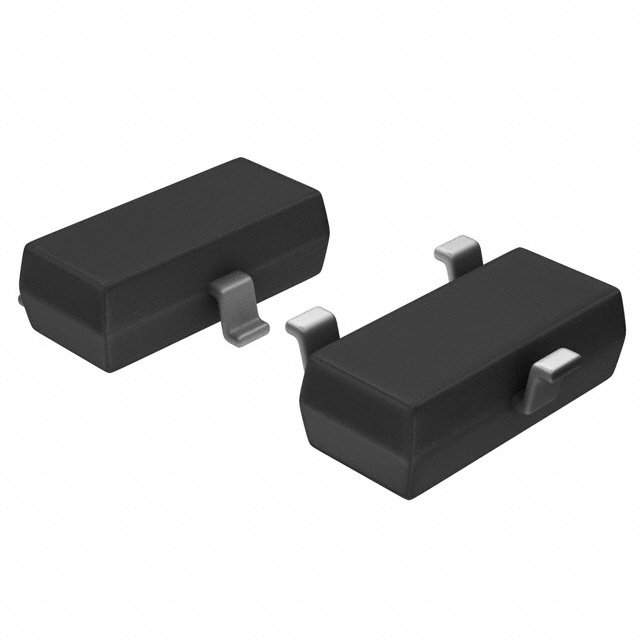

Bipolar (BJT) Transistor NPN 45 V 100 mA 100MHz 200 mW Surface Mount SOT-23
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 4 week(s)Product Status: ActivePackaging: Digi-Reel®Download Free CAD Model:%20LIMITED&mpn=BC847B&lbl=1&lbc=000000&q3=1)
Technical Details:
| Packaging | Digi-Reel® |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Mounting Type | Surface Mount |
| Transistor Type | NPN |
| Operating Temperature | 150°C (TJ) |
| Vce Saturation (Max) @ Ib, Ic | 500mV @ 5mA, 100mA |
| Current - Collector Cutoff (Max) | 100nA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 200 @ 2mA, 5V |
| Frequency - Transition | 100MHz |
| Supplier Device Package | SOT-23 |
| Current - Collector (Ic) (Max) | 100 mA |
| Voltage - Collector Emitter Breakdown (Max) | 45 V |
| Power - Max | 200 mW |
Request a Quote
