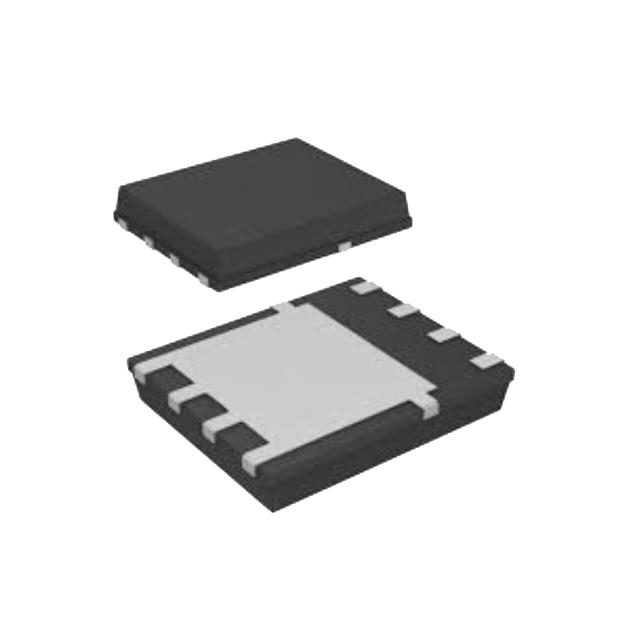

AMS424N
MOSFET N-CH 40V 60A DFN3X3Manufacturer: Analog Power Inc.
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 40 V 4.6W (Ta), 83W (Tc) Surface Mount 8-DFN (3.3x3.3)
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 8-PowerWDFN |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| FET Feature | - |
| Power Dissipation (Max) | 4.6W (Ta), 83W (Tc) |
| Vgs(th) (Max) @ Id | 1V @ 250µA |
| Supplier Device Package | 8-DFN (3.3x3.3) |
| Grade | - |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 40 V |
| Gate Charge (Qg) (Max) @ Vgs | 40 nC @ 4.5 V |
| Input Capacitance (Ciss) (Max) @ Vds | 3905 pF @ 15 V |
| Qualification | - |
Request a Quote
