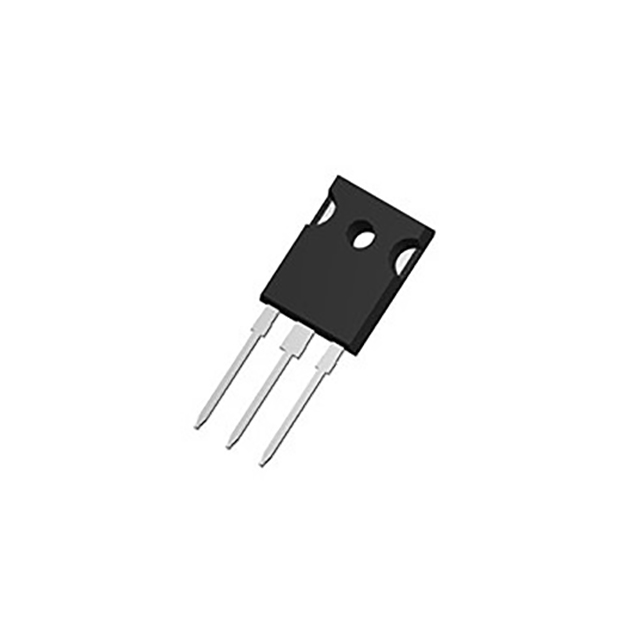

AMC3M0040120D
SICFET N-CH 1200V 15A TO-247Manufacturer: Analog Power Inc.
Categories: Single FETs, MOSFETs
Quality Control: Learn More
Analog Power Inc. AMC3M0040120D is an N-Channel SiCFET designed for high-power applications. This component features a continuous drain current (Id) of 15A at 25°C and a maximum power dissipation of 500W, with a breakdown voltage of 1200V. The Rds On is specified at a maximum of 40mOhm at 5A and 10V. It is housed in a TO-247-3 through-hole package, suitable for demanding thermal management. The device operates within a temperature range of -55°C to 155°C (TJ). Drive voltage requirements range from 15V to 20V, with a maximum gate-source voltage (Vgs) of ±25V and a threshold voltage (Vgs(th)) of 2V (min) at 250µA. This SiCFET is utilized in sectors such as industrial power supplies, electric vehicle charging, and renewable energy systems.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | TO-247-3 |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 155°C (TJ) |
| Technology | SiCFET (Silicon Carbide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 15A (Tc) |
| Rds On (Max) @ Id, Vgs | 40mOhm @ 5A, 10V |
| Power Dissipation (Max) | 500W (Tc) |
| Vgs(th) (Max) @ Id | 2V @ 250µA (Min) |
| Supplier Device Package | TO-247 |
| Drive Voltage (Max Rds On, Min Rds On) | 15V, 20V |
| Vgs (Max) | ±25V |
