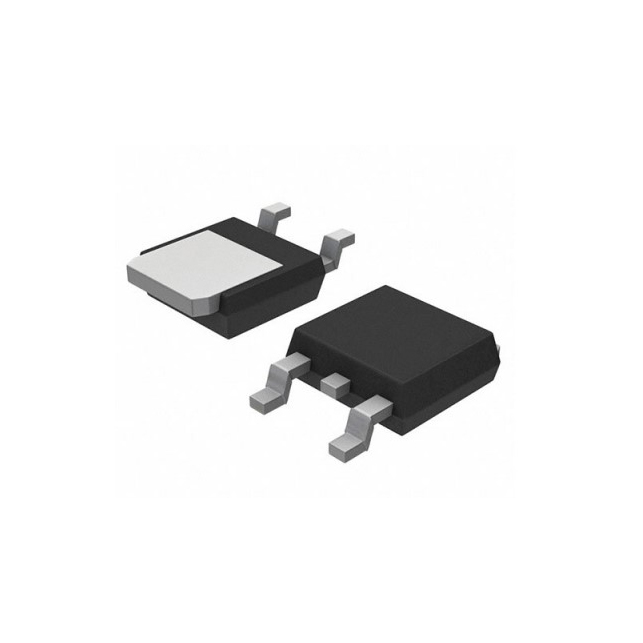

AM90N06-04D
MOSFET N-CH 60V 83A TO-252Manufacturer: Analog Power Inc.
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 60 V 83A (Tc) 50W (Tc) Surface Mount TO-252
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: Product Status: ActivePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 83A (Tc) |
| Rds On (Max) @ Id, Vgs | 4.8mOhm @ 45A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 50W (Tc) |
| Vgs(th) (Max) @ Id | 1V @ 250µA |
| Supplier Device Package | TO-252 |
| Grade | - |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 60 V |
| Gate Charge (Qg) (Max) @ Vgs | 64 nC @ 4.5 V |
| Input Capacitance (Ciss) (Max) @ Vds | 11698 pF @ 15 V |
| Qualification | - |
