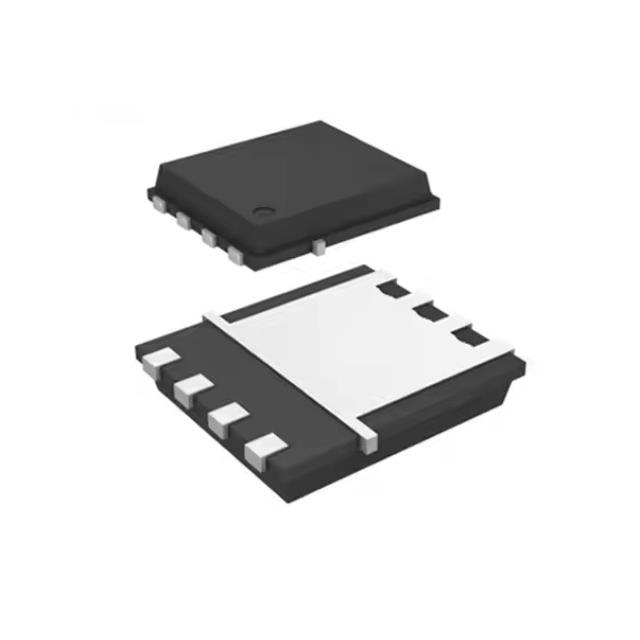

AM7432N-CT
MOSFET N-CH 30V 27A DFN5x6Manufacturer: Analog Power Inc.
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 30 V 27A (Ta) 5W (Ta) Surface Mount DFN5x6
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: Product Status: ActivePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | DFN5x6 |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 27A (Ta) |
| Rds On (Max) @ Id, Vgs | 5.9mOhm @ 19.1A, 2.5V |
| FET Feature | - |
| Power Dissipation (Max) | 5W (Ta) |
| Vgs(th) (Max) @ Id | 400mV @ 250µA (Min) |
| Supplier Device Package | DFN5x6 |
| Drive Voltage (Max Rds On, Min Rds On) | 2.5V, 4.5V |
| Vgs (Max) | ±12V |
| Drain to Source Voltage (Vdss) | 30 V |
| Gate Charge (Qg) (Max) @ Vgs | 43 nC @ 4.5 V |
| Input Capacitance (Ciss) (Max) @ Vds | 5146 pF @ 15 V |
