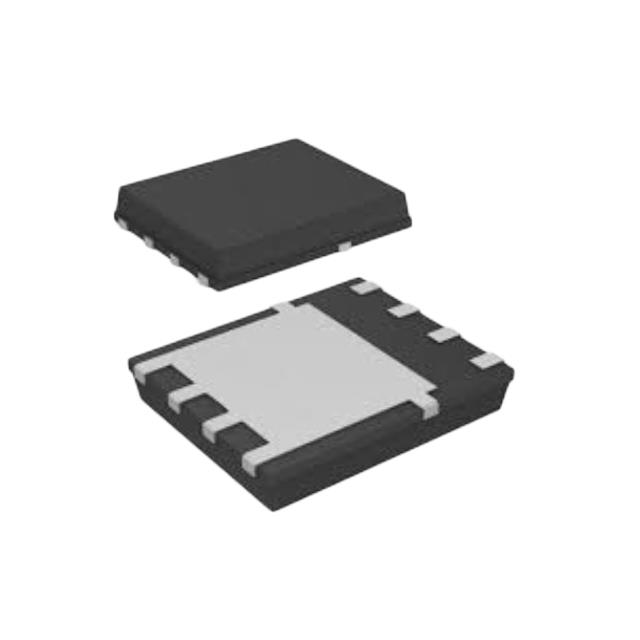

AM7358N
MOSFET N-CH 100V 28A DFN3X3Manufacturer: Analog Power Inc.
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 100 V 11A (Ta), 28A (Tc) 3.5W (Ta), 22W (Tc) Surface Mount 8-DFN (3x3)
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 8-PowerVDFN |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 11A (Ta), 28A (Tc) |
| Rds On (Max) @ Id, Vgs | 18mOhm @ 6A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 3.5W (Ta), 22W (Tc) |
| Vgs(th) (Max) @ Id | 1V @ 250µA |
| Supplier Device Package | 8-DFN (3x3) |
| Grade | - |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 100 V |
| Gate Charge (Qg) (Max) @ Vgs | 11 nC @ 4.5 V |
| Input Capacitance (Ciss) (Max) @ Vds | 828 pF @ 50 V |
| Qualification | - |
