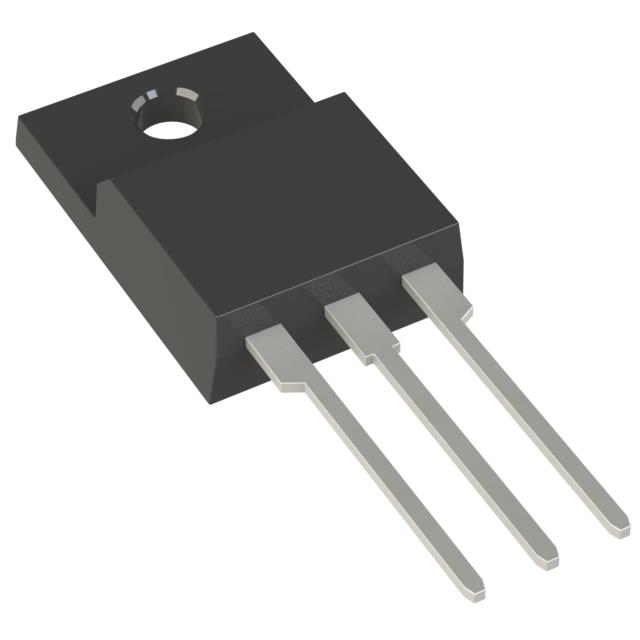

AM20N10-52PF
MOSFET N-CH 100V 20A TO-220CFMManufacturer: Analog Power Inc.
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 100 V 20A (Tc) 60W (Tc) Through Hole TO-220CFM
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-220-3 Full Pack |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 20A (Tc) |
| Rds On (Max) @ Id, Vgs | 52mOhm @ 10A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 60W (Tc) |
| Vgs(th) (Max) @ Id | 1V @ 250µA |
| Supplier Device Package | TO-220CFM |
| Grade | - |
| Drive Voltage (Max Rds On, Min Rds On) | 6V, 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 100 V |
| Gate Charge (Qg) (Max) @ Vgs | 18 nC @ 6 V |
| Input Capacitance (Ciss) (Max) @ Vds | 1184 pF @ 50 V |
| Qualification | - |
Request a Quote
