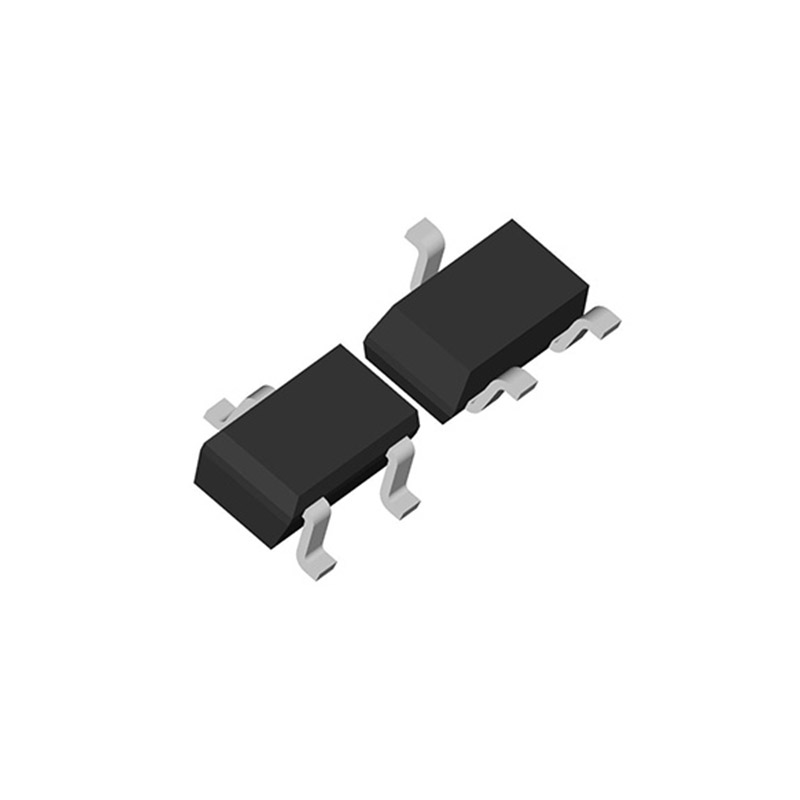

2N7002-CT
MOSFET N-CH 60V 0.6A SOT-23Manufacturer: Analog Power Inc.
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 60 V 600mA (Ta) 1.3W (Ta) Surface Mount SOT-23
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: Product Status: ActivePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 600mA (Ta) |
| Rds On (Max) @ Id, Vgs | 3Ohm @ 600mA, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 1.3W (Ta) |
| Vgs(th) (Max) @ Id | 1V @ 250µA |
| Supplier Device Package | SOT-23 |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 60 V |
| Gate Charge (Qg) (Max) @ Vgs | 4 nC @ 4.5 V |
| Input Capacitance (Ciss) (Max) @ Vds | 474 pF @ 15 V |
