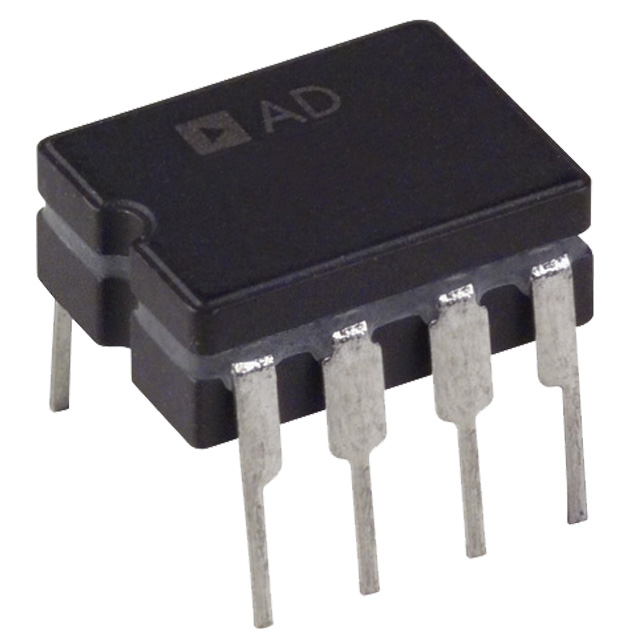

AD587UQ
IC VREF SERIES 0.05% 8CERDIPManufacturer: Analog Devices Inc.
Categories: Voltage Reference
Quality Control: Learn More
Series Voltage Reference IC Fixed 10V V ±0.05% 10 mA 8-CERDIP
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10Product Status: Discontinued at DigiKeyPackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±0.05% |
| Package / Case | 8-CDIP (0.300"", 7.62mm) |
| Temperature Coefficient | 5ppm/°C |
| Output Type | Fixed |
| Mounting Type | Through Hole |
| Voltage - Input | 13.5V ~ 36V |
| Reference Type | Series |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Current - Supply | 4mA |
| Supplier Device Package | 8-CERDIP |
| Voltage - Output (Min/Fixed) | 10V |
| Noise - 0.1Hz to 10Hz | 4µVp-p |
| Noise - 10Hz to 10kHz | - |
| Current - Output | 10 mA |
