ADV7523ABCBZ-P-RL
IC TX HDMI/DVI LPManufacturer: Analog Devices Inc.
Categories: Video Processing
Quality Control: Learn More
Analog Devices Inc. ADV7523ABCBZ-P-RL is a high-performance video transmitter IC designed for DVI 1.0 and HDMI 1.3 compliant interfaces. This device facilitates seamless digital video transmission, supporting resolutions and refresh rates crucial for advanced consumer video applications. Its capabilities extend to audio embedding and EDID management, ensuring robust interoperability within sophisticated multimedia systems. The ADV7523ABCBZ-P-RL features an I2C control interface for flexible configuration and integration. Supplied in a compact 49-WLCSP package, it is optimized for surface mount assembly, enabling high-density board designs. The component operates within a voltage range of 1.8V to 3.3V, making it suitable for a wide array of power-sensitive multimedia and display products. This transmitter IC is integral to modern video processing pipelines in consumer electronics.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |

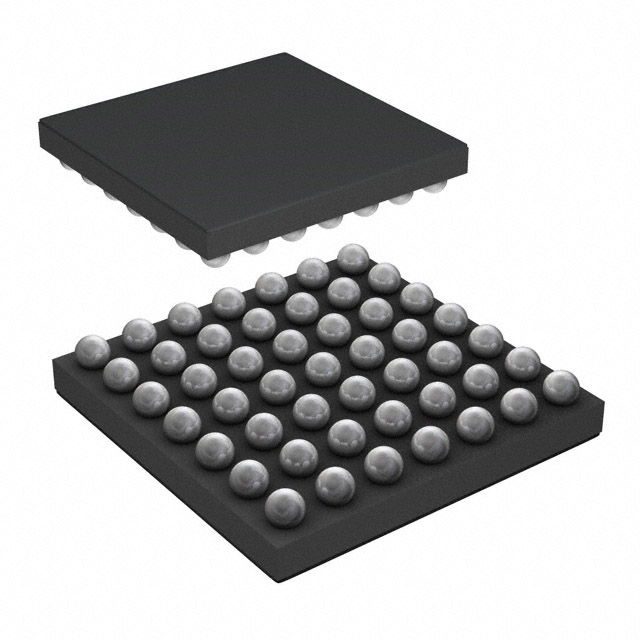

| Package / Case | 49-BGA, WLCSP |
| Mounting Type | Surface Mount |
| Function | Transmitter |
| Voltage - Supply | 1.8V ~ 3.3V |
| Applications | Consumer Video |
| Standards | DVI 1.0, HDMI 1.3 |
| Supplier Device Package | 49-WLCSP |
| Control Interface | I2C |
