AD8192XCPZ
IC VIDEO SWITCH 56LFCSPManufacturer: Analog Devices Inc.
Categories: Video Processing
Quality Control: Learn More
Analog Devices AD8192XCPZ is a high-performance video switch IC designed for demanding video processing applications. This component facilitates seamless switching between multiple video sources, supporting critical industry standards including DVI and HDMI 1.3a. Its versatile control interface, featuring both I2C and serial communication protocols, allows for flexible integration into complex system architectures. The AD8192XCPZ is housed in a compact 56-LFCSP-VQ (8x8) package, making it ideal for space-constrained designs commonly found in video display systems and professional broadcast equipment. This surface-mount device offers robust signal integrity for high-definition video transmission.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |

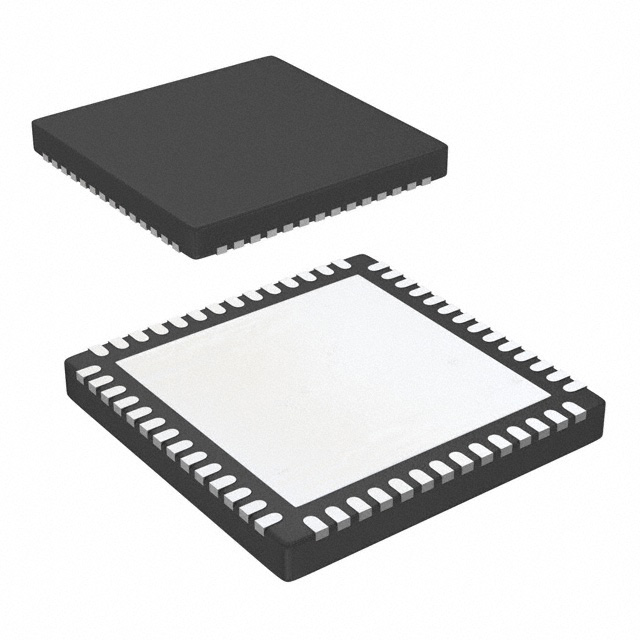

| Package / Case | 56-VFQFN Exposed Pad, CSP |
| Mounting Type | Surface Mount |
| Function | Switch |
| Voltage - Supply | - |
| Applications | Video Display |
| Standards | DVI, HDMI 1.3a |
| Supplier Device Package | 56-LFCSP-VQ (8x8) |
| Control Interface | I2C, Serial |
