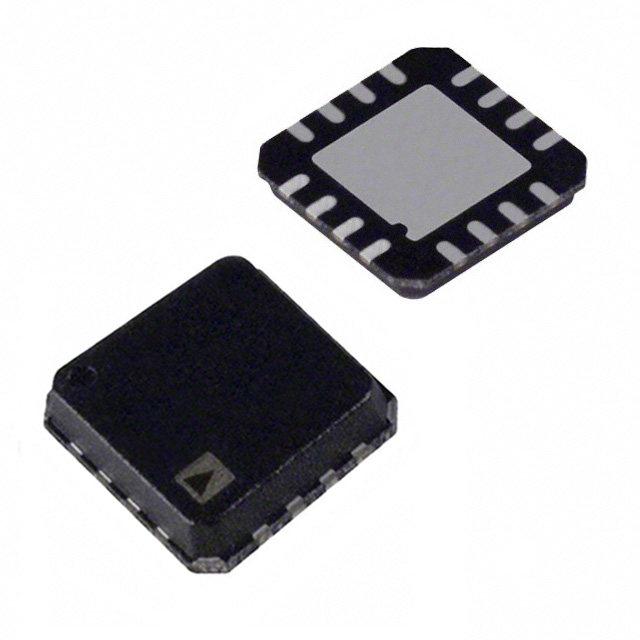

ADD8704ACPZ-REEL7
IC OPAMP LCD QUAD 16V 16LFCSPManufacturer: Analog Devices Inc.
Categories: Video Amps and Modules
Quality Control: Learn More
Analog Devices Inc. ADD8704ACPZ-REEL7 is a quad operational amplifier designed for TFT-LCD panel applications. This component functions as a gamma buffer and VCOM driver, crucial for accurate display performance. Featuring four independent channels, the ADD8704ACPZ-REEL7 offers a -3dB bandwidth of 6.8 MHz and a slew rate of 6V/µs. It operates from a single supply voltage ranging from 4.5V to 16V, with a typical supply current of 2.8 mA. The output current per channel is 35 mA. The device is supplied in a 16-LFCSP (4x4) package, suitable for surface mount assembly. This component is utilized in the display industry for driving TFT-LCD panels.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Cut Tape (CT)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Cut Tape (CT) |
| Package / Case | 16-VQFN Exposed Pad, CSP |
| Output Type | - |
| Mounting Type | Surface Mount |
| Applications | TFT-LCD Panels: Gamma Buffer, VCOM Driver |
| Slew Rate | 6V/µs |
| Voltage - Supply, Single/Dual (±) | 4.5V ~ 16V |
| Supplier Device Package | 16-LFCSP (4x4) |
| Number of Circuits | 4 |
| Current - Supply | 2.8 mA |
| Current - Output / Channel | 35 mA |
| -3db Bandwidth | 6.8 MHz |
