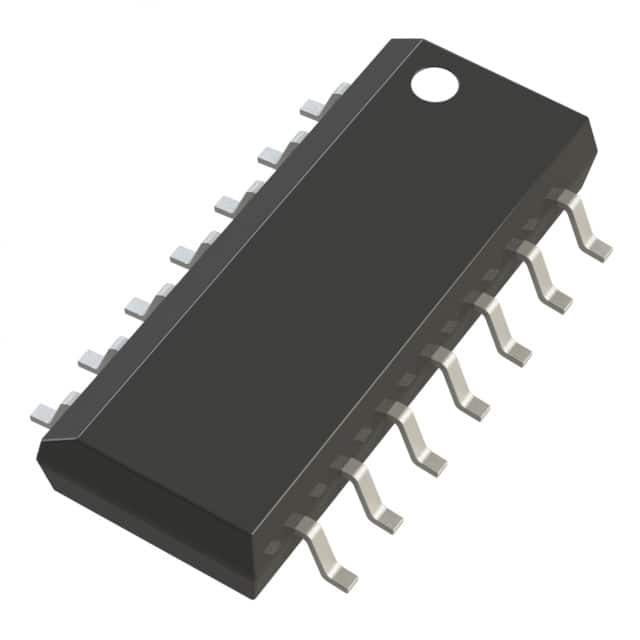

AD813AR-14-REEL
IC AMP TRIPLE VIDEO LP 14-SOICManufacturer: Analog Devices Inc.
Categories: Video Amps and Modules
Quality Control: Learn More
Analog Devices Inc. AD813AR-14-REEL is a triple, current-feedback video amplifier. This component features a -3dB bandwidth of 100 MHz and a high slew rate of 250V/µs, making it suitable for demanding video signal processing applications. The device operates with a low supply current of 4.5 mA and delivers an output current of 50 mA per channel. It supports single or dual power supplies ranging from 2.4V to 36V or ±1.2V to ±18V, respectively. The AD813AR-14-REEL is housed in a 14-SOIC package, intended for surface mounting. Its design is well-suited for broadcast equipment, professional video systems, and high-speed signal conditioning.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 14-SOIC (0.154"", 3.90mm Width) |
| Output Type | - |
| Mounting Type | Surface Mount |
| Applications | Current Feedback |
| Slew Rate | 250V/µs |
| Voltage - Supply, Single/Dual (±) | 2.4V ~ 36V, ±1.2V ~ 18V |
| Supplier Device Package | 14-SOIC |
| Number of Circuits | 3 |
| Current - Supply | 4.5 mA |
| Current - Output / Channel | 50 mA |
| -3db Bandwidth | 100 MHz |
