AD813AN

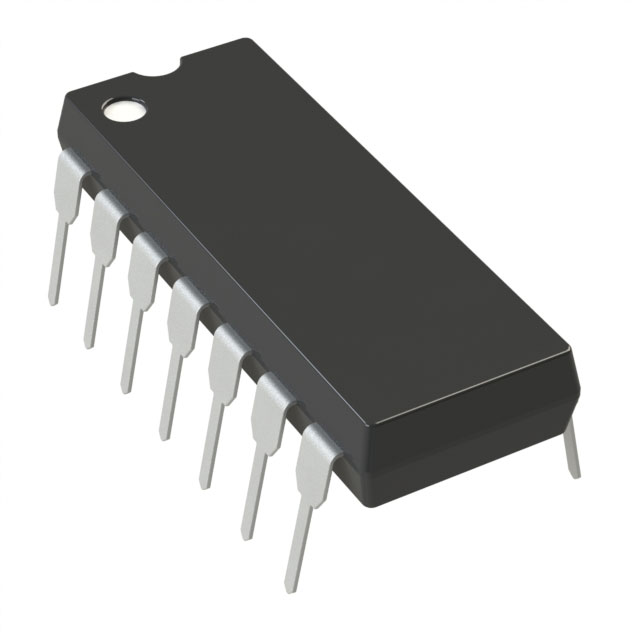

IC AMP TRIPLE VIDEO LP 14 DIPManufacturer: Analog Devices Inc.
Categories: Video Amps and Modules
Quality Control: Learn More
Analog Devices Inc. AD813AN is a triple current feedback amplifier designed for high-performance video applications. This component features a -3dB bandwidth of 100 MHz and a rapid slew rate of 250V/µs, making it suitable for demanding video processing tasks. Each of the three internal amplifiers offers a typical output current of 50 mA, enabling robust driving capabilities. The AD813AN operates with a low supply current of 4.5 mA and supports a wide voltage range, accommodating single supplies from 2.4V to 36V or dual supplies from ±1.2V to ±18V. Packaged in a 14-pin DIP, this through-hole mounted device is commonly employed in broadcast video, professional video equipment, and high-speed signal processing systems.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 14-DIP (0.300"", 7.62mm) |
| Output Type | - |
| Mounting Type | Through Hole |
| Applications | Current Feedback |
| Slew Rate | 250V/µs |
| Voltage - Supply, Single/Dual (±) | 2.4V ~ 36V, ±1.2V ~ 18V |
| Supplier Device Package | 14-PDIP |
| Number of Circuits | 3 |
| Current - Supply | 4.5 mA |
| Current - Output / Channel | 50 mA |
| -3db Bandwidth | 100 MHz |
