AD8023AR

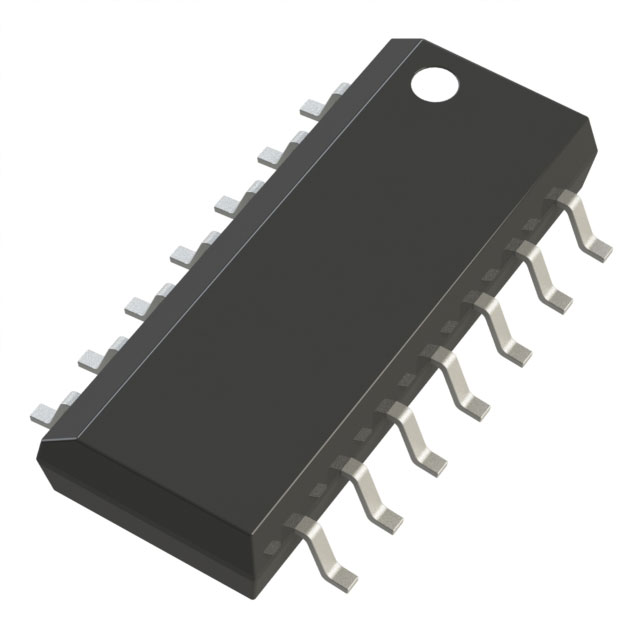

IC AMP VIDEO TRIPLE HC 14-SOICManufacturer: Analog Devices Inc.
Categories: Video Amps and Modules
Quality Control: Learn More
Analog Devices Inc. AD8023AR is a triple current feedback video amplifier. This 14-SOIC package component offers a -3dB bandwidth of 125 MHz and a high slew rate of 1200V/µs, making it suitable for demanding video processing applications. Each channel provides 70 mA of output current with a low supply current of 7 mA. The device supports single or dual supply voltages ranging from 4.2V to 15V or ±2.1V to ±7.5V respectively. Its surface mount design and 14-SOIC packaging are optimized for automated assembly. This amplifier finds utility in broadcast equipment, professional video systems, and high-speed signal processing.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 14-SOIC (0.154"", 3.90mm Width) |
| Output Type | - |
| Mounting Type | Surface Mount |
| Applications | Current Feedback |
| Slew Rate | 1200V/µs |
| Voltage - Supply, Single/Dual (±) | 4.2V ~ 15V, ±2.1V ~ 7.5V |
| Supplier Device Package | 14-SOIC |
| Number of Circuits | 3 |
| Current - Supply | 7 mA |
| Current - Output / Channel | 70 mA |
| -3db Bandwidth | 125 MHz |
