HMC1167LP5E
VCO 6.375/12.75GHZ 2-13V 5X5MMManufacturer: Analog Devices Inc.
Categories: VCOs (Voltage Controlled Oscillators)
Quality Control: Learn More
6.375GHz, 12.75GHz Center Frequency 2 V ~ 13 V Voltage Controlled Oscillator 3.5±4.5, 11±4 dBm 20 2nd Harmonic Typ (dBc)
Additional Information
Series: HMC1167RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: StripDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Strip |

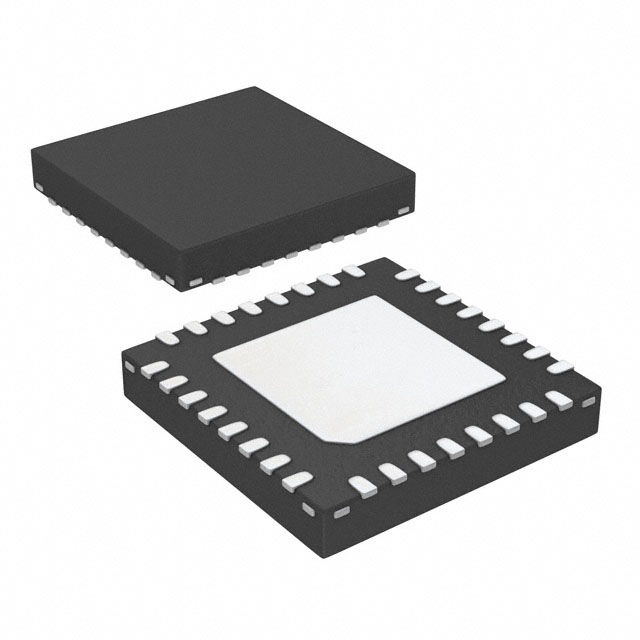

| Package / Case | 32-VFQFN Exposed Pad, CSP |
| Size / Dimension | 0.197"" L x 0.197"" W (5.00mm x 5.00mm) |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 5V |
| Height | 0.039"" (1.00mm) |
| Frequency Range | 6.085 ~ 6.665GHz, 12.17 ~ 13.33GHz |
| 2nd Harmonic, Typ (dBc) | 20 |
| Frequency - Center | 6.375GHz, 12.75GHz |
| Icc Max | 250mA |
| Pushing (MHz/V) | 2 |
| Phase Noise Typ (dBc/Hz) | -86 |
| Power (dBm) | 3.5±4.5, 11±4 |
| Tuning Voltage (VDC) | 2 V ~ 13 V |
Request a Quote
