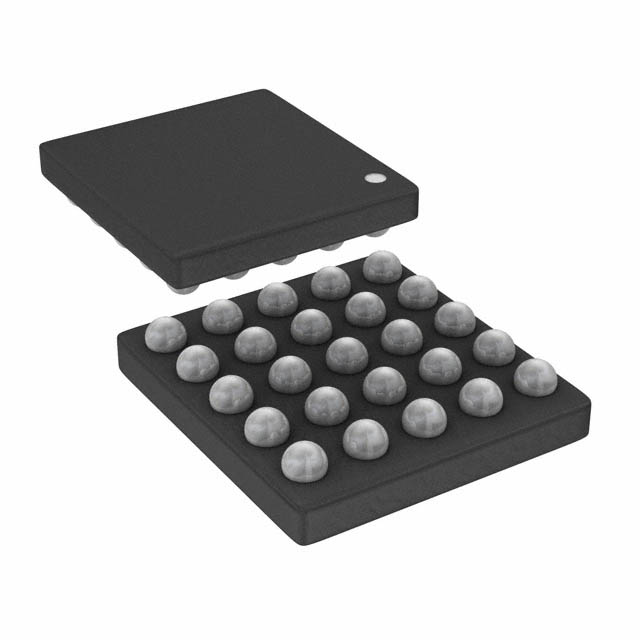

AD7877ACBZ-REEL7
IC SCREEN CNTRL 12BIT 25WLCSPManufacturer: Analog Devices Inc.
Categories: Touch Screen Controllers
Quality Control: Learn More
Analog Devices Inc. AD7877ACBZ-REEL7 is a 12-bit touchscreen controller designed for 4-wire resistive touchscreens. This component features an SPI interface for efficient communication and supports both external and internal voltage references. Operating from a 2.7V to 5.25V supply range, it exhibits a low current consumption of just 1 µA. The AD7877ACBZ-REEL7 is housed in a compact 25-WLCSP (2.5x2.8) package, utilizing surface mount technology. Its operating temperature range is from -40°C to 85°C, making it suitable for demanding environments. This controller is commonly employed in automotive, industrial control, and consumer electronics applications where precise touch input management is critical.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 25-UFBGA, WLCSP |
| Mounting Type | Surface Mount |
| Interface | SPI |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 2.7V ~ 5.25V |
| Resolution (Bits) | 12 b |
| Supplier Device Package | 25-WLCSP (2.5x2.8) |
| Voltage Reference | External, Internal |
| Touchscreen | 4 Wire Resistive |
| Current - Supply | 1 µA |
