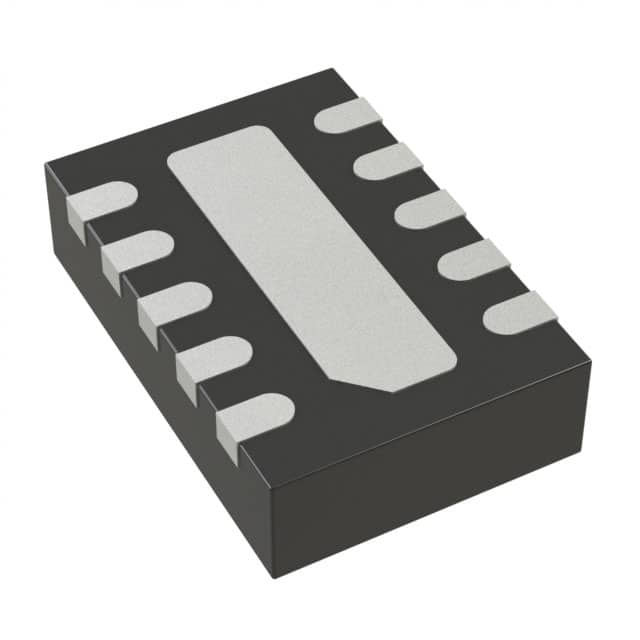

LTC2917IDDB-A1#TRMPBF
IC SUPERVISOR 1 CHANNEL 10DFNManufacturer: Analog Devices Inc.
Categories: Supervisors
Quality Control: Learn More
Analog Devices Inc. LTC2917IDDB-A1-TRMPBF is a single-channel, multi-voltage supervisor featuring an open-drain or open-collector output. This component is housed in a 10-DFN (3x2) package and is designed for surface mounting. It monitors one voltage input and provides an active-low reset signal with a minimum timeout of 150ms. The device offers 27 selectable threshold combinations, allowing for flexible voltage monitoring configurations. Operating within an ambient temperature range of -40°C to 85°C, the LTC2917IDDB-A1-TRMPBF is supplied on a tape and reel. This supervisor is utilized in applications requiring robust power-fail detection and system reset, commonly found in industrial control systems, automotive electronics, and data acquisition equipment.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 39 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-WFDFN Exposed Pad |
| Mounting Type | Surface Mount |
| Output | Open Drain or Open Collector |
| Type | Multi-Voltage Supervisor |
| Reset | Active Low |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Number of Voltages Monitored | 1 |
| Reset Timeout | 150ms Minimum |
| Voltage - Threshold | 27 Selectable Threshold Combinations |
| Supplier Device Package | 10-DFN (3x2) |
| Programmable | Not Verified |
