ADM6339NARJZ-RL7
IC SUPERVISOR 4 CHANNEL SOT23-6Manufacturer: Analog Devices Inc.
Categories: Supervisors
Quality Control: Learn More

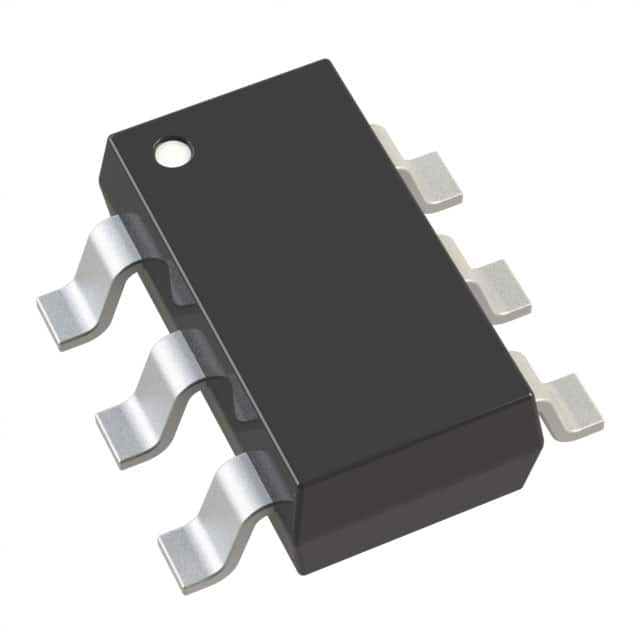

Analog Devices Inc. ADM6339NARJZ-RL7 is a multi-voltage supervisory IC featuring four monitored voltage inputs. This component, housed in a SOT-23-6 package, offers open-drain or open-collector outputs and employs an active-low reset signal with a minimum timeout of 140ms. The threshold voltages are specified at 2.78V, 4.63V, an adjustable setting, and -4.63V. Designed for surface mount applications, the ADM6339NARJZ-RL7 is supplied in tape and reel packaging. Its operating temperature range is from -40°C to 85°C (TA). This device finds utility in various industrial and consumer electronics applications demanding robust voltage monitoring and system reset capabilities.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SOT-23-6 |
| Mounting Type | Surface Mount |
| Output | Open Drain or Open Collector |
| Type | Multi-Voltage Supervisor |
| Reset | Active Low |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Number of Voltages Monitored | 4 |
| Reset Timeout | 140ms Minimum |
| Voltage - Threshold | 2.78V, 4.63V, Adj, -4.63V |
| Supplier Device Package | SOT-23-6 |
| Programmable | Not Verified |
