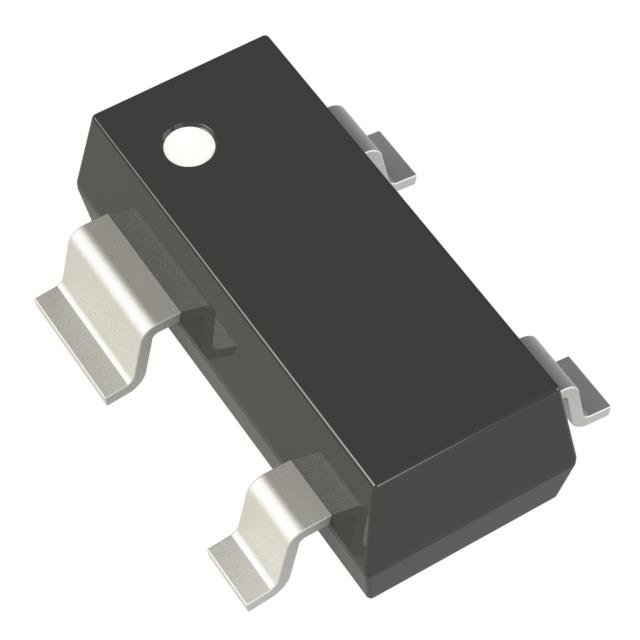

ADM6315W31D2ARTZR7
IC SUPERVISOR 1 CHANNEL SOT143-4Manufacturer: Analog Devices Inc.
Categories: Supervisors
Quality Control: Learn More
Analog Devices Inc. ADM6315W31D2ARTZR7 is a single-channel supervisor IC. This device features a 3.08V voltage threshold and provides an active-low reset output with a minimum timeout of 20ms. The output can be configured as open-drain or open-collector. Designed for surface-mount applications, it is supplied in a SOT-143-4 package, delivered on tape and reel. Operating across a temperature range of -40°C to 125°C, this component is suitable for applications in industrial automation, consumer electronics, and automotive systems where reliable power-on reset and supervisory functions are critical. The TO-253-4, TO-253AA package designation corresponds to the SOT-143-4 form factor.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-253-4, TO-253AA |
| Mounting Type | Surface Mount |
| Output | Open Drain or Open Collector |
| Type | Simple Reset/Power-On Reset |
| Reset | Active Low |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Number of Voltages Monitored | 1 |
| Reset Timeout | 20ms Minimum |
| Voltage - Threshold | 3.08V |
| Supplier Device Package | SOT-143-4 |
| Programmable | Not Verified |
