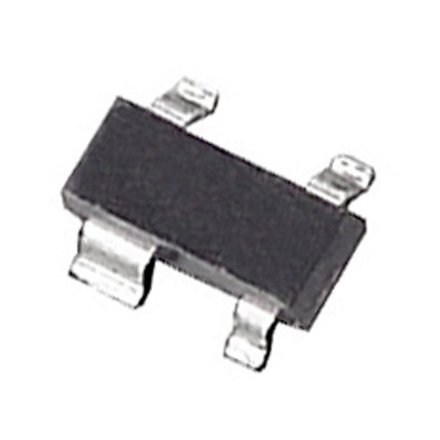

ADM6315-44D2ARTZR7

IC SUPERVISOR OD 4.39V SOT143

Quality Control: Learn More

The Analog Devices Inc. ADM6315-44D2ARTZR7 is a single-channel supervisor IC designed for robust power-on reset and watchdog timer applications. Featuring an open-drain output, this component monitors a single voltage threshold of 4.39V, providing an active-low reset signal with a minimum timeout of 20ms. Its SOT-143-4 package facilitates surface-mount integration, suitable for compact designs. Operating across a wide temperature range of -40°C to 125°C, the ADM6315-44D2ARTZR7 is commonly employed in industrial control systems, automotive electronics, and consumer devices where reliable system reset and power monitoring are critical. This component is supplied in bulk packaging.

Additional Information

Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:

Download Free CAD Model:

Technical Details:

Packaging	Bulk
Package / Case	TO-253-4, TO-253AA
Mounting Type	Surface Mount
Output	Open Drain or Open Collector
Type	Simple Reset/Power-On Reset
Reset	Active Low
Operating Temperature	-40°C ~ 125°C (TA)
Number of Voltages Monitored	1
Reset Timeout	20ms Minimum
Voltage - Threshold	4.39V
Supplier Device Package	SOT-143-4
Programmable	Not Verified
