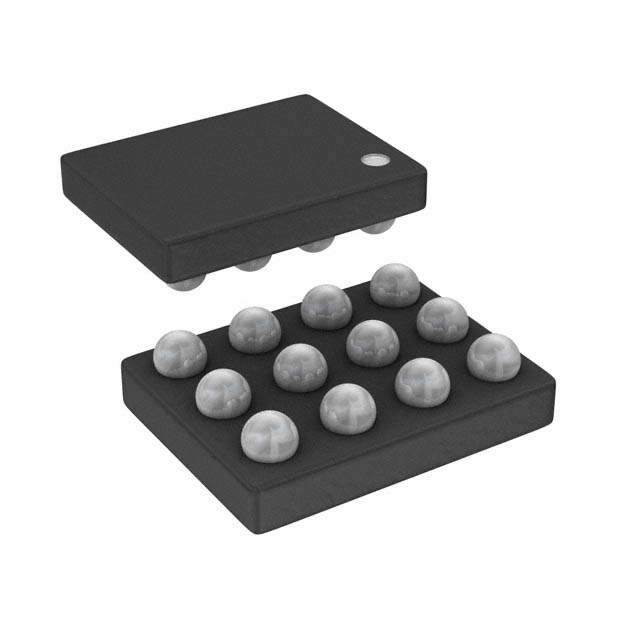

AD9394BCBZ-R7
IC CHARGE PUMP HDMI 12WLCSPManufacturer: Analog Devices Inc.
Categories: Specialized
Quality Control: Learn More
Analog Devices Inc. AD9394BCBZ-R7 is a compact 12-WLCSP component designed for general-purpose power management applications. This charge pump IC facilitates HDMI signal processing, operating within a 2.5V to 4.5V supply voltage range. Its surface mount configuration and 1.46x1.96mm WLCSP package are optimized for space-constrained designs. The AD9394BCBZ-R7 is engineered for reliable performance across an operating temperature range of -40°C to 85°C, making it suitable for integration into demanding industrial and consumer electronics systems. Supplied on a tape and reel for automated assembly, this component addresses critical power delivery needs in portable devices and display interfaces.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: Last Time BuyPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 12-WFBGA, WLCSP |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 2.5V ~ 4.5V |
| Applications | General Purpose |
| Current - Supply | - |
| Supplier Device Package | 12-WLCSP (1.46x1.96) |
Request a Quote
