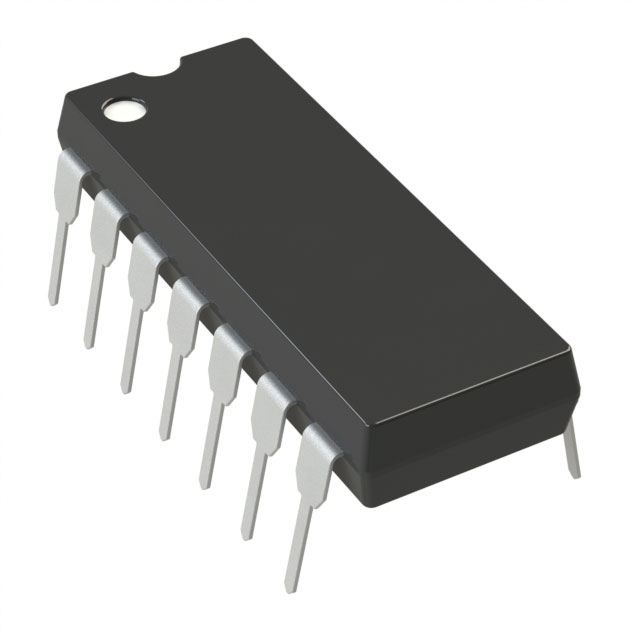

AD8174AN
IC MUX W/AMP BUFFERED 14-DIPManufacturer: Analog Devices Inc.
Categories: Specialized
Quality Control: Learn More
Analog Devices Inc. AD8174AN, a high-speed multiplexer with an integrated amplifier, is designed for demanding signal routing applications. This component, packaged in a 14-lead PDIP, offers a ±4V to ±6V supply voltage range, enabling robust operation across various signal levels. Its buffered amplifier interface ensures signal integrity while facilitating seamless switching between multiple input channels. The through-hole mounting type simplifies integration into existing board designs. The AD8174AN is utilized in broadcast video, professional video, and high-definition display systems where precise signal management and minimal distortion are critical. Its through-hole mounting type simplifies integration into existing board designs.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 14-DIP (0.300"", 7.62mm) |
| Mounting Type | Through Hole |
| Interface | - |
| Voltage - Supply | ±4V ~ 6V |
| Applications | Multiplexer with Amplifier |
| Supplier Device Package | 14-PDIP |
Request a Quote
